Static and cyclic pressure test benches for pipes and ducts

Ref : LifeTube

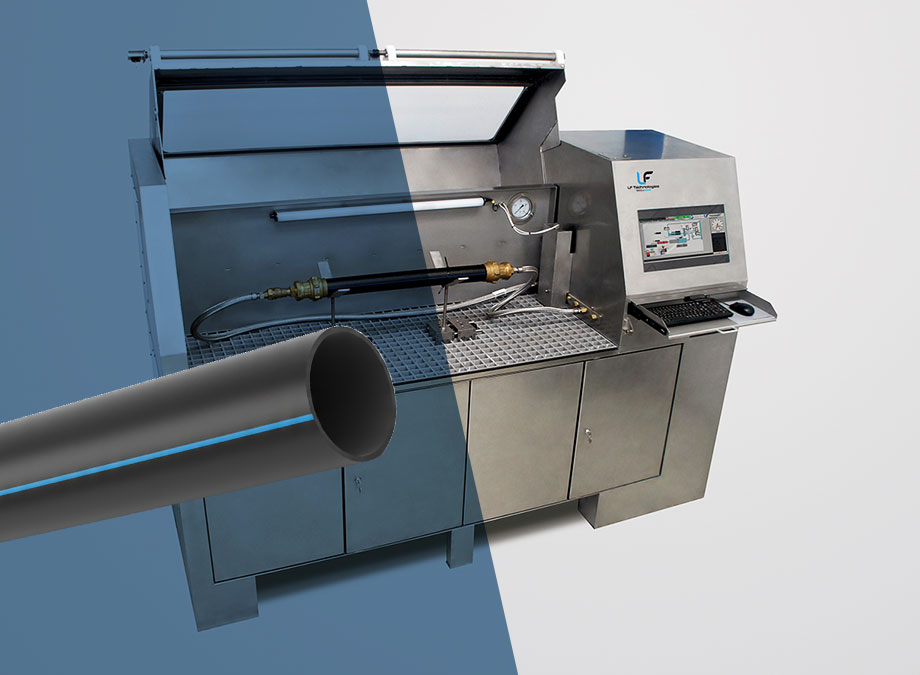

Static and cyclic pressure test bench for pipes and ducts (LifeTube): this test bench performs cyclic water pressure tests on one or more products simultaneously to simulate water hammer or accelerate component ageing. The stress profiles (curves, cycles, sequences) are configurable, with automatic purging and leak monitoring by pressure drop or flow detection.

+33 2 52 56 04 20

Request a quote

Max. pressure water

100 bar

Delta Volume max

1 dm3

Max. instantaneous flow

5 dm3/s

Max. cycling frequency

1Hz

Products tested

Sector of activity

Piping and ducting

Main functions

This test bench is designed to perform cyclic water pressure tests on one or more products simultaneously. It simulates water hammer in piping systems, or tests (accelerated) aging of components. It checks for leaks by pressure drop or flow detection. It can also be used to carry out pressure tests on components subject to specific legislation.

The shape of the load curves can be parameterized. The number of test cycles and their sequence can be programmed.

Air purging is automatic and verified by system stiffness measurement.

Operating mode

Find out how our static and cyclic pressure test bench works for piping and ducting.

The aim of a test is to apply static pressure cycles, according to a trapezoidal profile, in a more or less elastic product.

Sample installation and clamping
Connection of supply hose and drain hose
Software setup / program selection
Launching the test scenario
Automatic purging, servo-controlled cycling, automatic leakage monitoring
Recording test results

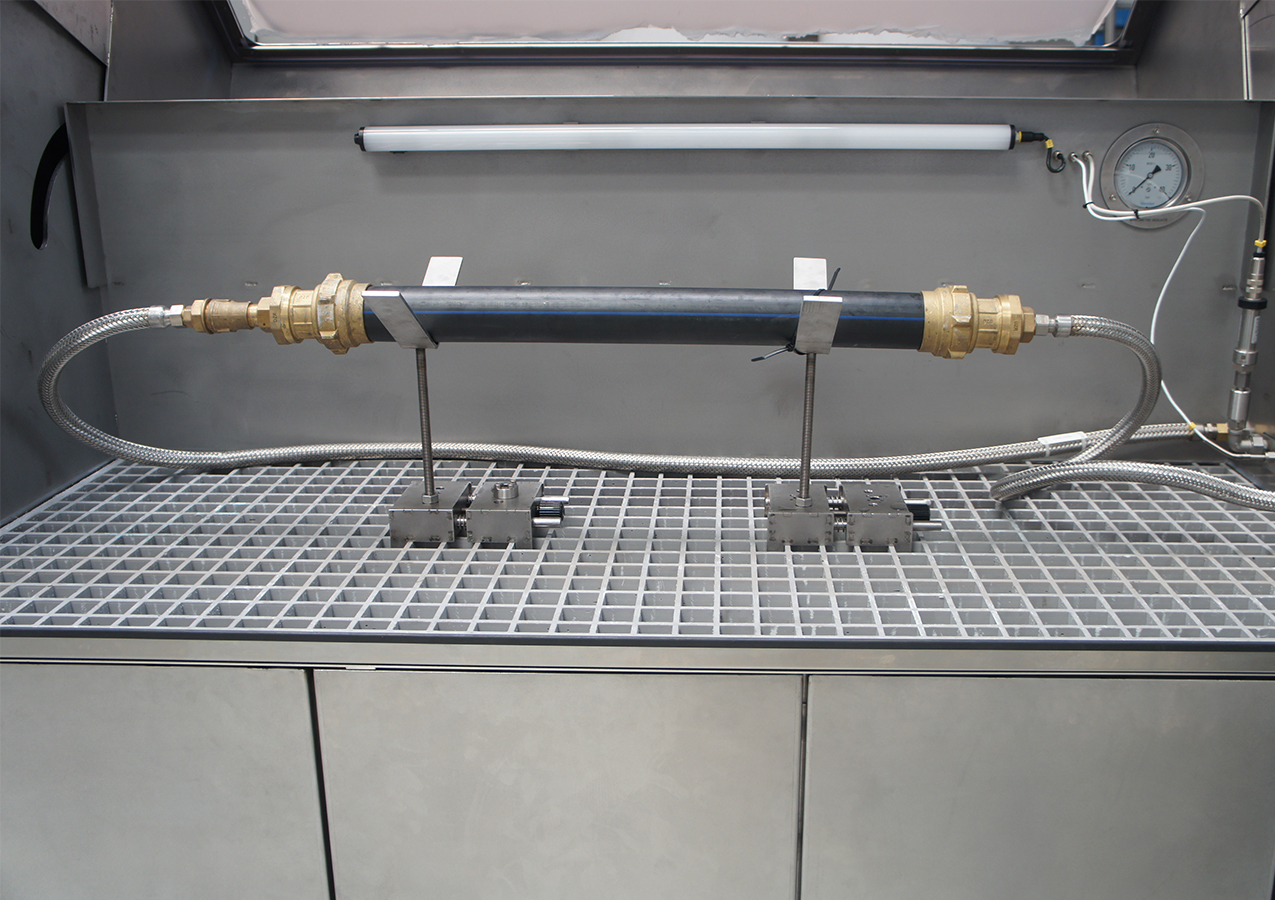

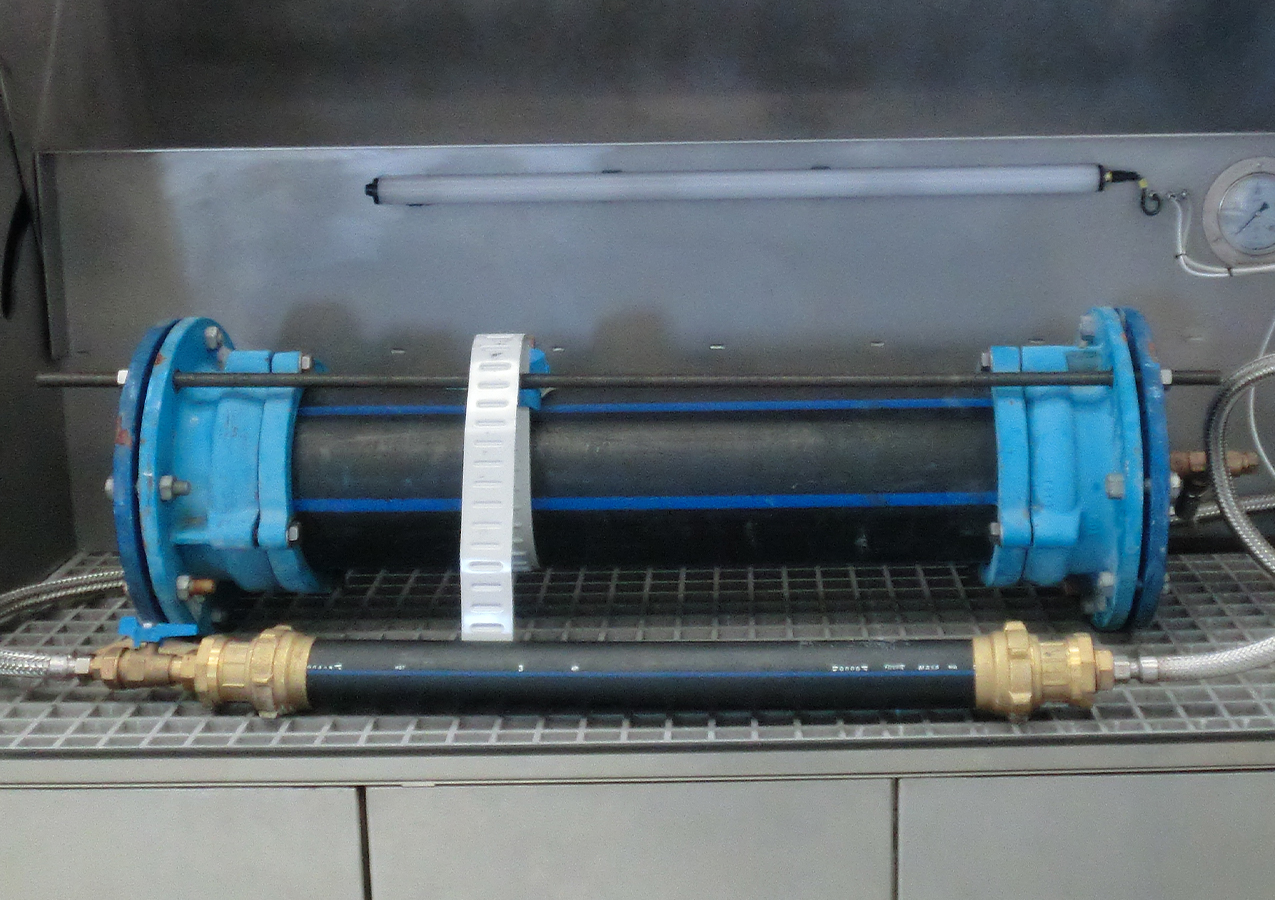

PE pipe fitting

Mechanical strength of PE pipe fitting under pressure.

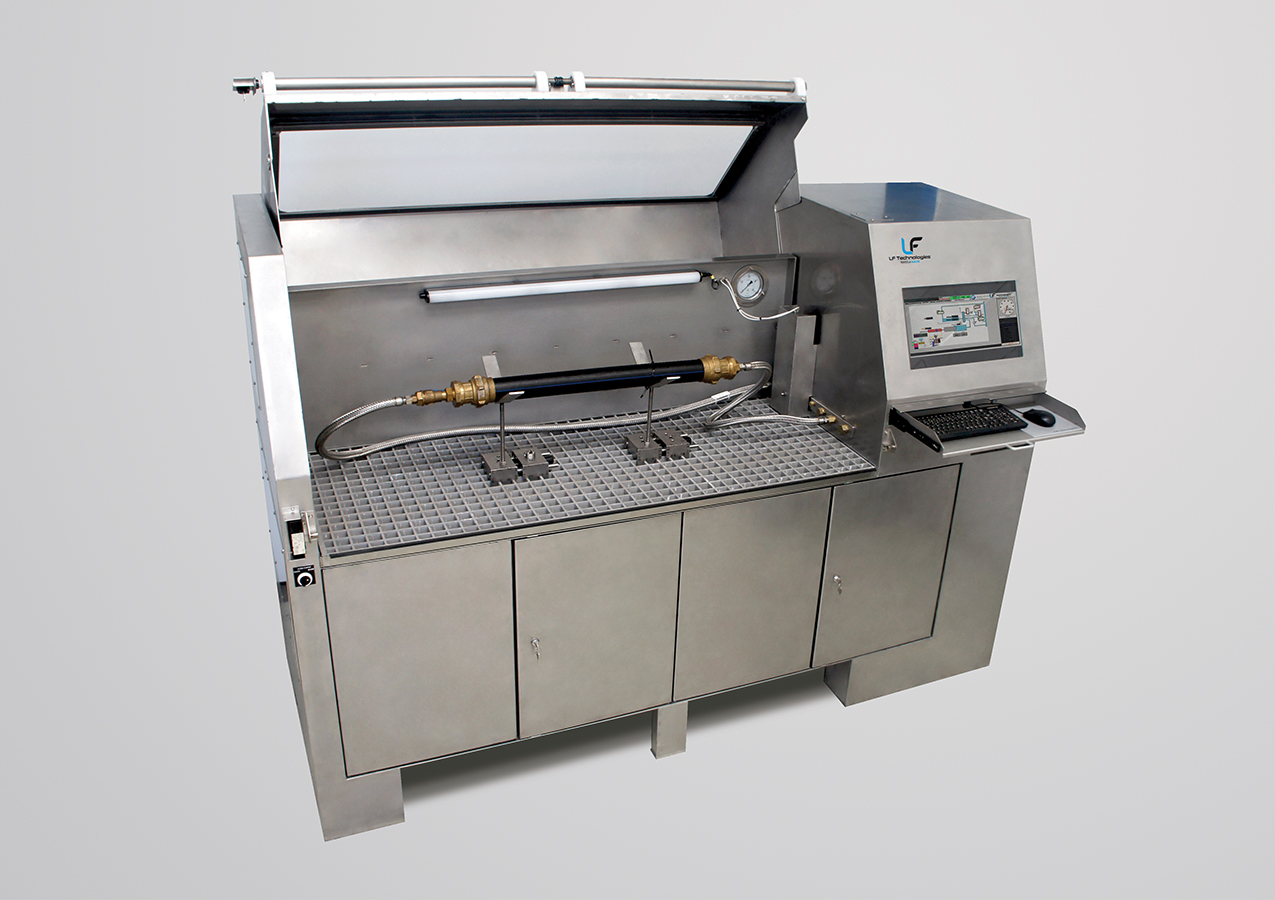

Cyclic pressure test bench

This test bench is designed to perform cyclic water pressure tests on one or more products simultaneously. Il simule des coups de bélier dans les tuyauteries.

PE pipe fitting

Benefits of LifeTube

Volume sensor

This sensor optimizes stroke positioning and monitors water volume.

Leak detection

The sink drain is fitted with a drip sensor to stop the test if a leak is detected.

Energy saving

Only 10% of the required instantaneous power is installed.

TECHNICAL CHARACTERISTICS of the Static and cyclic pressure test bench for pipes and ducts

Specifications	LifeTube-40	LifeTube-100
Max. water pressure	40 bars	100 bars
Max. instantaneous flow	5 dm3/s	5 dm3/s
Up and down at maximum flow	20 dm3/s²	20 dm3/s²
Min. and max. cycle pressure	0 à 40 bars	0 à 40 bars
Measurement accuracy
Accuracy of water pressure measurement	± 0.1 bar	± 0.1 bar
Accuracy of temperature measurement	± 0.5° C	± 0.5° C
Delta volume measurement accuracy	± 0.001 dm3	± 0.001 dm3
Dimensions of a workstation
Length (bonnet closed)	2 350 mm	2 350 mm
Depth (bonnet closed)	1 020 mm	1 020 mm
Height (bonnet closed)	1 600 mm	1 600 mm
Weight	1 100 kg	1 100 kg

Customer applications

Would you like to find out more about hydraulic test benches?
Find out everything you need to know and much more!

Piping

Pressure cycle test bench

Cyclic pressure test rig for simulating water hammer in pipes. Leakage testing by pressure drop or flow detection.

View the project

Hydraulic

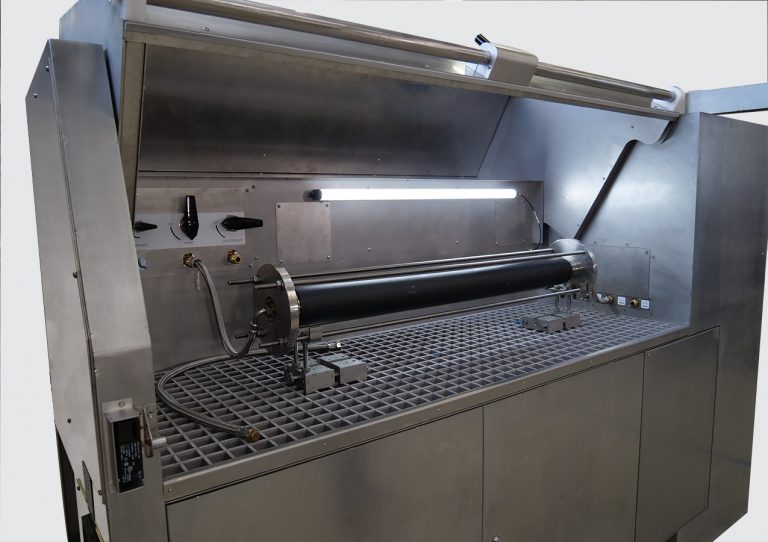

Pressure generation bench for pipelines

The pipe pressure test rig is a hydrostatic test rig designed to apply cyclic and static pressure. A dedicated circuit also allows the simulation of water hammer.

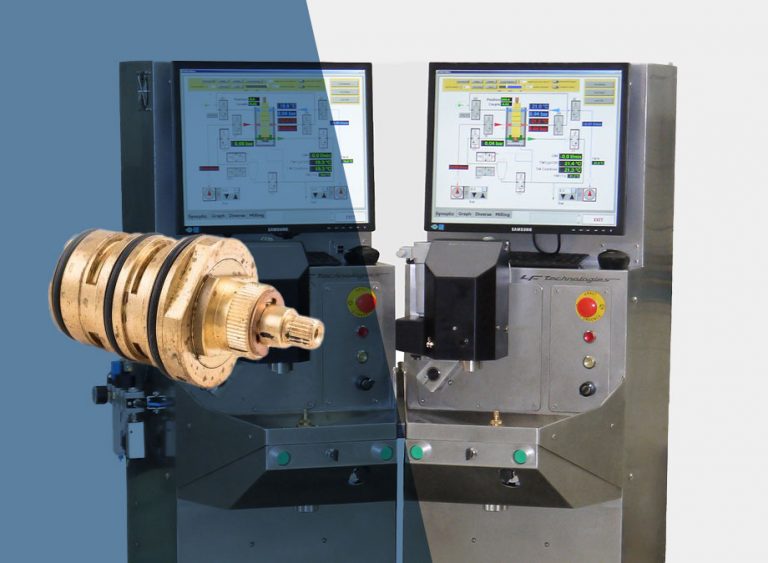

Automatic temperature control and test bench for thermostatic cartridges
