Complete testing laboratory for hydraulic testing

Ref : HLC

Complete hydraulic testing solution
Test all your sanitary fittings
Performance, endurance, pressure and burst tests

+33 2 52 56 04 20

Request a quote

TESTED STANDARD

NF, EN, ASSE, NHS

Performance testing

Flow Rate & Pressure

Endurance tests

Scheduled Cycles

Test Conditions

Hot/Cold Water

Products tested

Sector of activity

Cartouche MitigeurSolenoid valve for faucetHoseElectronic Mixer TapMixer TapMechanical Mixer TapThermostatic Mixer TapFaucetTimed TapSafety valvePiping and ductingIndustrial Valve

Main functions

This comprehensive testing laboratory allows the main tests required for the qualification of faucets, mixers, and plumbing fixtures to be conducted within a single facility. It incorporates complementary testing capabilities to assess the durability of products through repeated cycles, measure their hydraulic performance, and replicate controlled hot and cold water conditions. Thanks to its automated control system, it facilitates test scheduling, data acquisition, result tracking, and the generation of reports tailored to the needs of industrial laboratories, technical centers, and certification bodies.

Operating mode

This comprehensive testing laboratory brings together several complementary testing facilities to qualify, validate, and compare faucets, mixers, and plumbing fixtures.

The solution combines an durability test bench for plumbing fixtures, a performance test bench for faucets and mechanical mixers, and a hot and cold water generator. This setup enables long-term testing, measurement of the products’ hydraulic performance, and the reproduction of controlled thermal conditions.

Centralized control allows users to program test sequences, acquire data, record results, and generate comprehensive test reports, which can be customized to meet the laboratory’s needs.

Features

Modular 3-in-1 solution for testing plumbing fixtures
Long-term endurance tests with programmed cycles
Performance measurement: flow rate, differential pressure, opening and closing
Production of hot water and cold water under controlled thermal conditions
Acquisition and recording of test data
Generation of automatic reports and analytical charts
A solution tailored for industrial laboratories, technical centers, and certification bodies

Bench developed to meet these standards:

EN 200

EN 817

EN 816

EN 1111

EN 15091

EN 15092

EN 1287

EN ISO 382

See all standards

Mechanical mixer taps

Endurance bench to test the service life of valves.

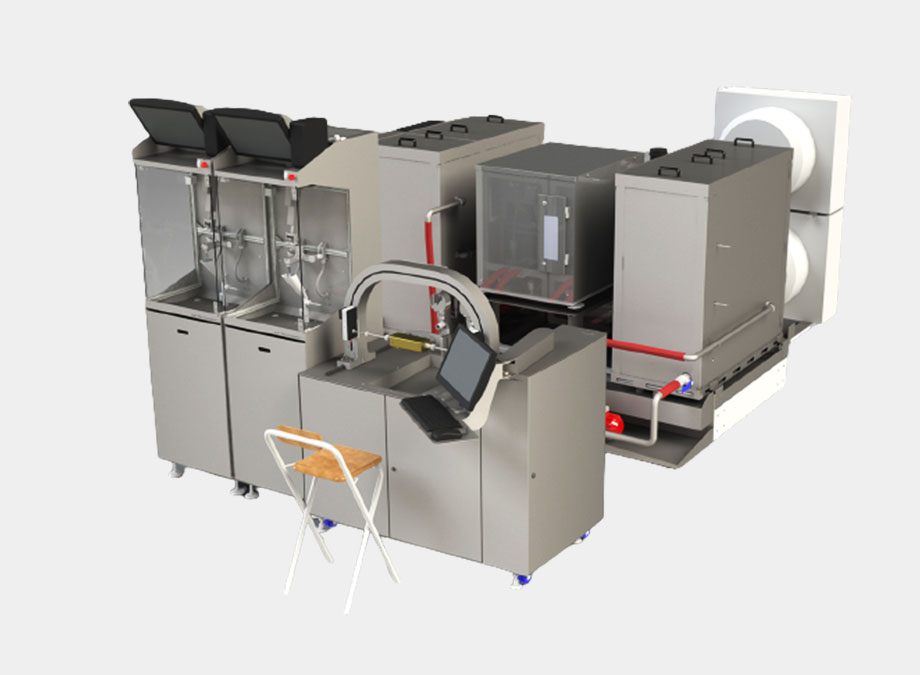

Complete HLC test laboratory

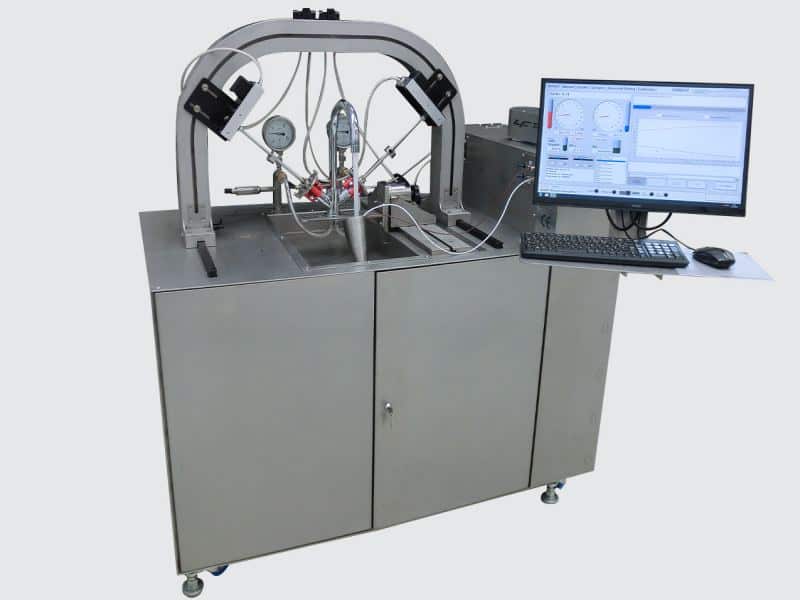

banc-performance-mitigeur-mecanique

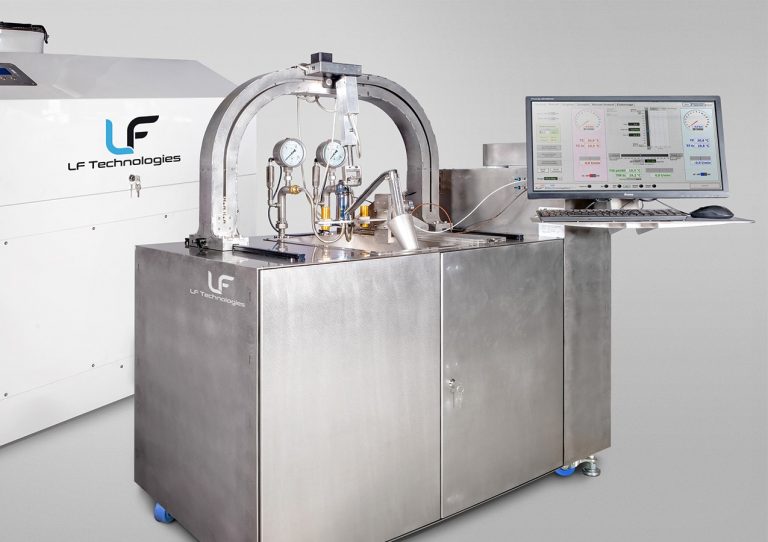

Le banc d’essais de performance HPMM a pour fonction d’éprouver la résistance mécanique et les cartouches hydrauliques des robinets, des mélangeurs ou encore des mitigeurs thermostatiques et mécaniques.

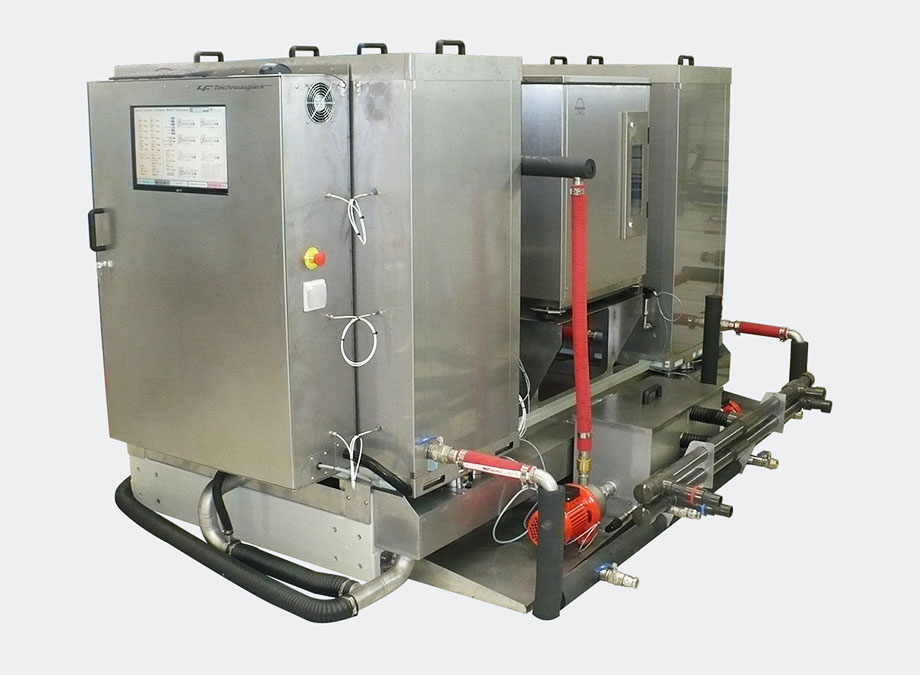

Hot and cold water generator – Waterbank

Hot and cold water generator - Waterbank

Life-Multi-Delabie

Endurance Test Bench for Faucets - Client: DELABIE - LF Technologies

HLC benefits

3-in-1 Integrated Solution

The laboratory includes an endurance test bench, a faucet and mixer performance test bench, and a hot/cold water generator. This approach makes it possible to centralize several testing facilities within a single setup.

Multiple tests

A wide range of tests can be performed: endurance, performance, measurement of flow, pressure, temperature, etc.

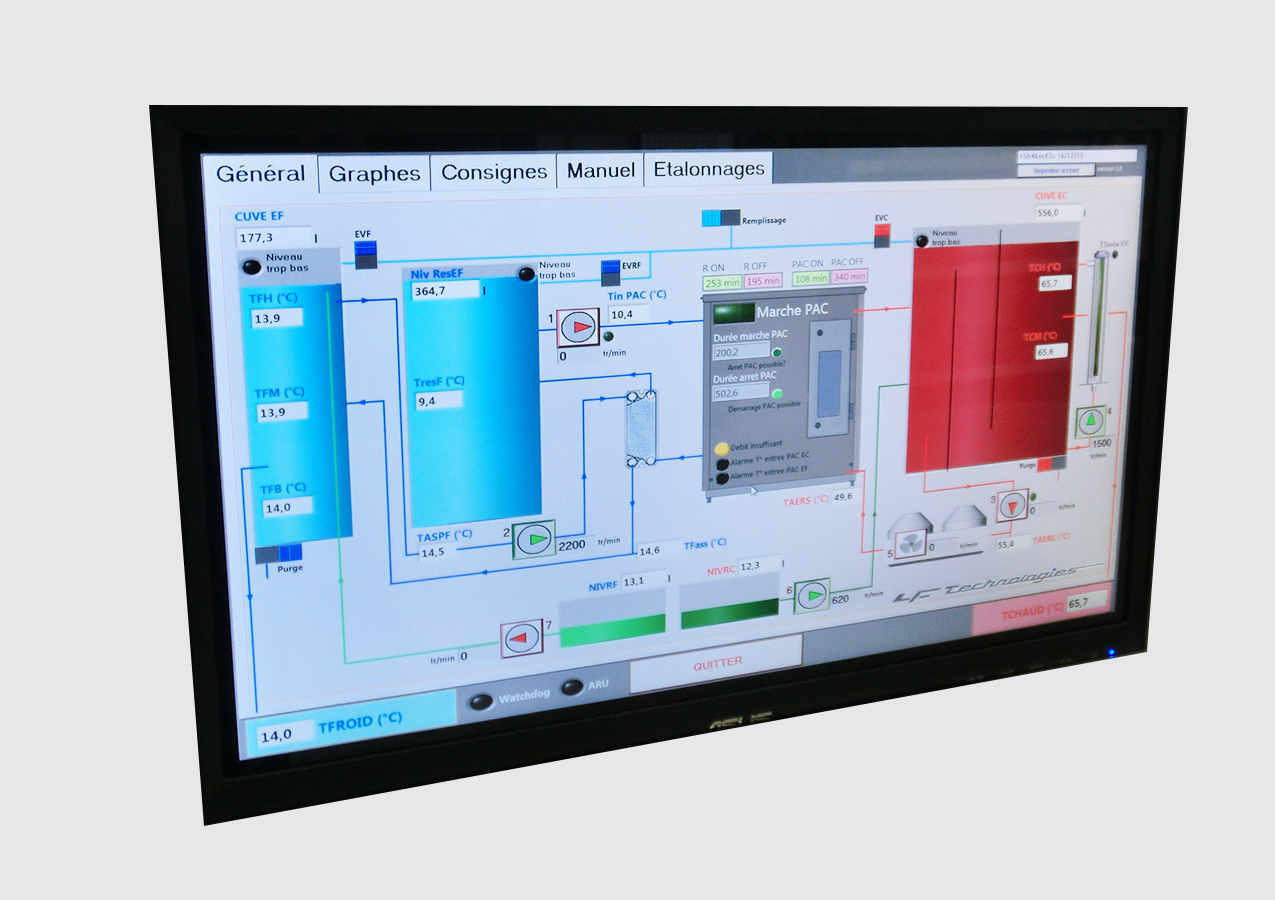

Pilotage centralisé

Le système facilite la programmation des séquences d’essais, l’acquisition des données, l’enregistrement des résultats et la génération de rapports configurables selon les besoins du laboratoire.

Homogeneity of results

Homogeneity of test reports regardless of the test bench used.
