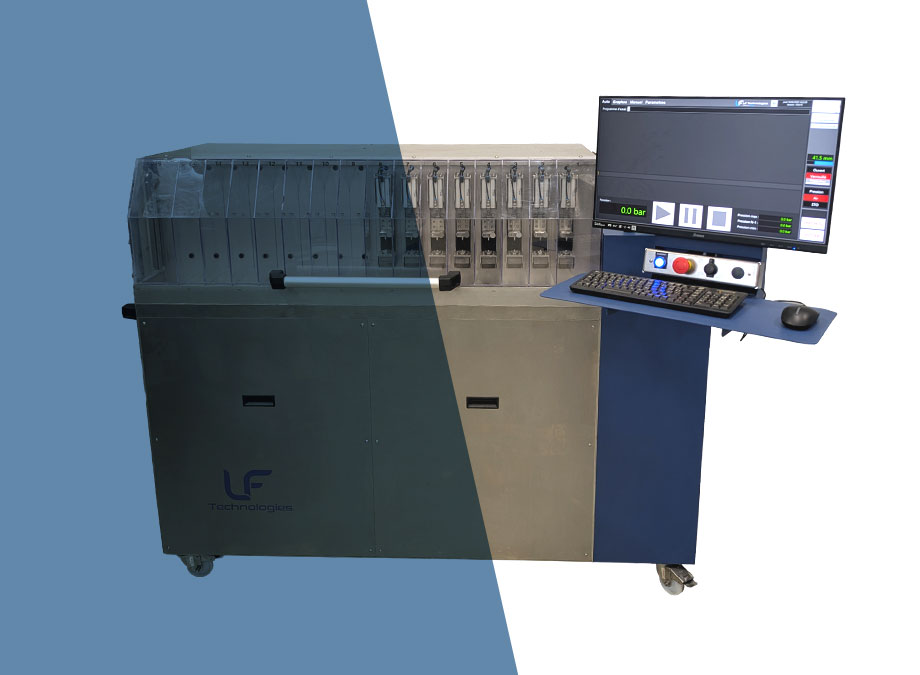

Pressure and Burst Test Bench
This automated burst testing bench is used to test the strength and leak tightness of pressurized components (lighters, cartridges) with an accuracy of 0.5 bar.
- Throughput: Simultaneous testing of up to 16 products.
- Performance: Adjustable pressure rise (0.5 to 2 bar/s) up to 110 bar.
- Safety: Stainless steel enclosure with protective cover and pneumatic clamping.
- Traceability: Monitoring software with automatic report generation.
Products tested
Sector of activity
Main functions
Strength testing and leak detection
The burst test bench is a pressure generator designed to perform strength tests on various products such as lighters, tanks, cartridges, and any other products that can be pressure-tested. Its modular design allows for testing up to 16 products, thereby ensuring component safety and compliance with production or R&D requirements.
Operating mode
Automated cycle for repeatability and safety
The test cycle is fully PC-controlled to ensure constant monitoring and metrological accuracy:
-
Setup and shutdown:
Place the products inside the secure chamber and set the desired pressures via the control interface. -
Pressurization:
Automatic clamping of products using pneumatic cylinders (245 N force) and gradual pressurization via the static generator (ramp from 0.5 to 2 bar/s). -

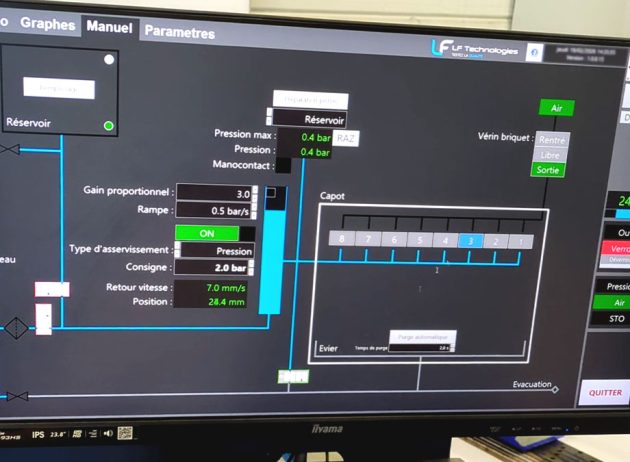

Analysis and traceability:
Continuous monitoring until a rupture or leak is detected, followed by automatic saving of the results in the software to ensure analysis and traceability.

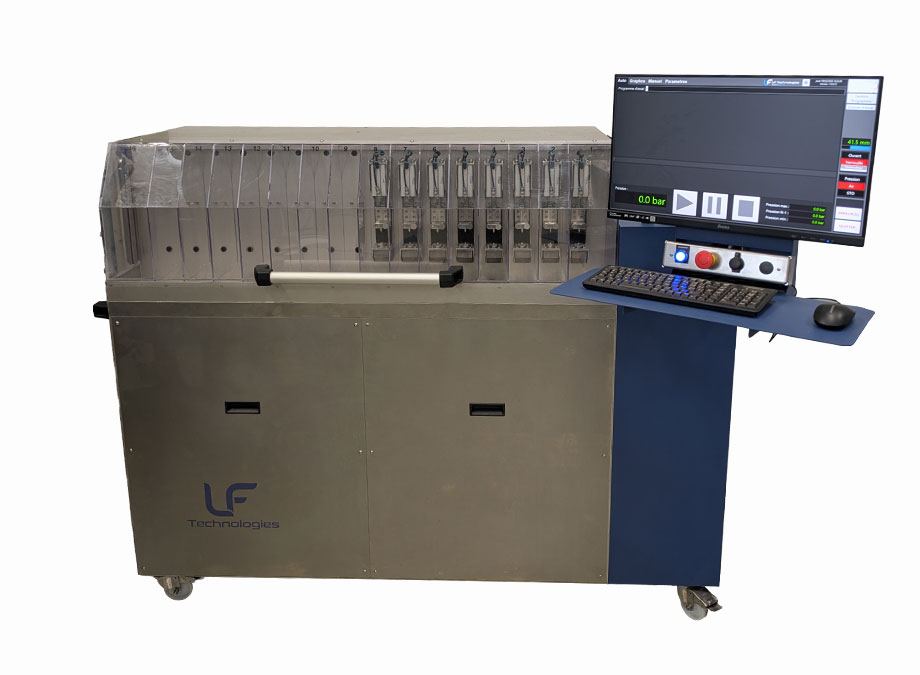

Pressure and burst test bench – Crash-Multi

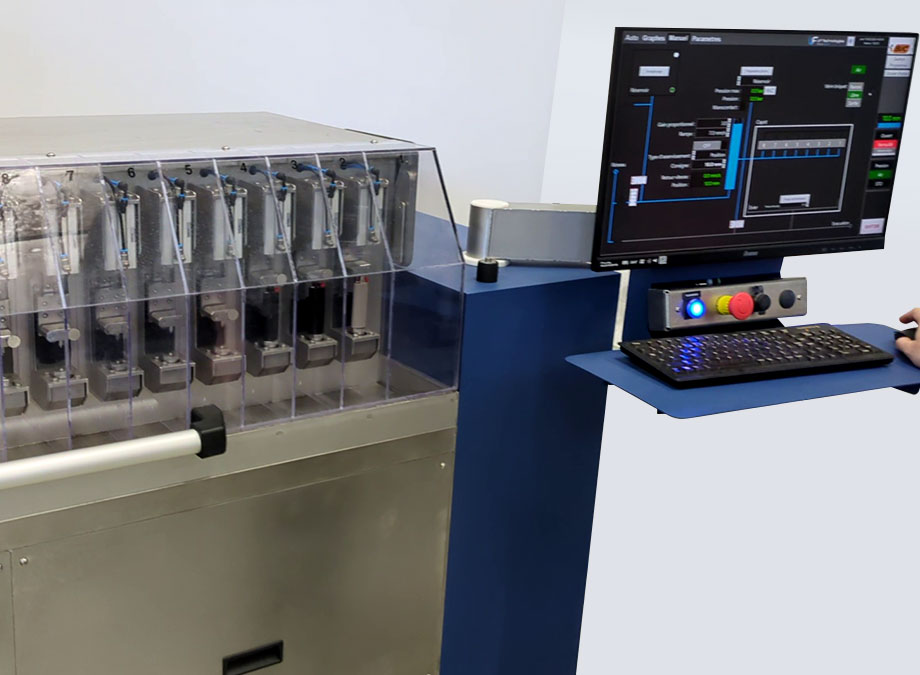

Secure enclosure for pressure and burst testing

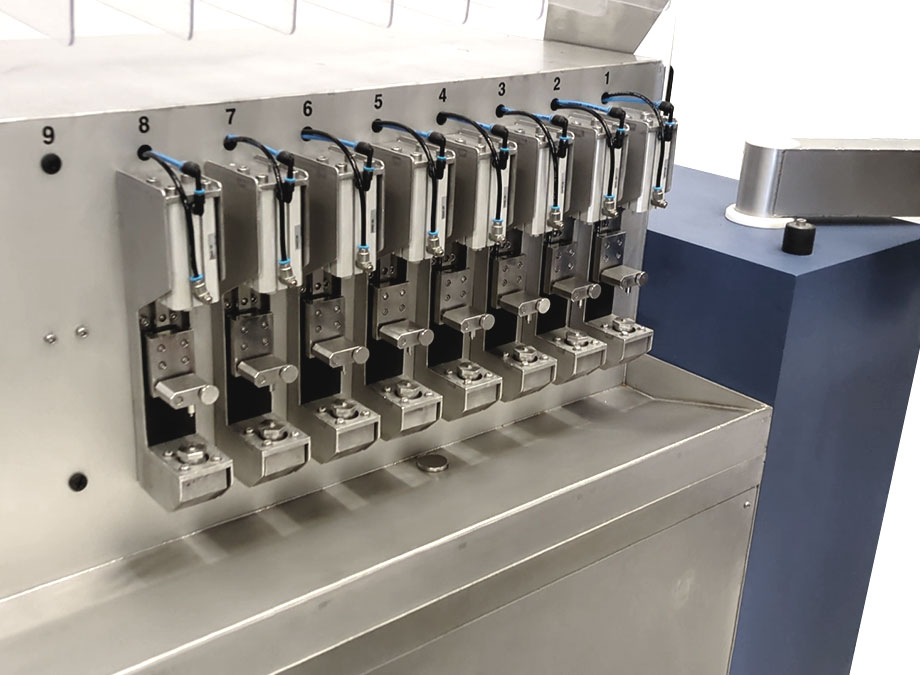

Test fixture for the pressure and burst test bench
Dedicated fixture for products to be tested. Modular and adjustable depending on the product being tested

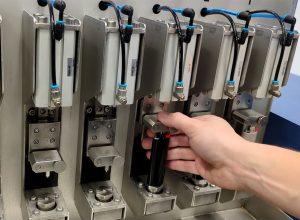

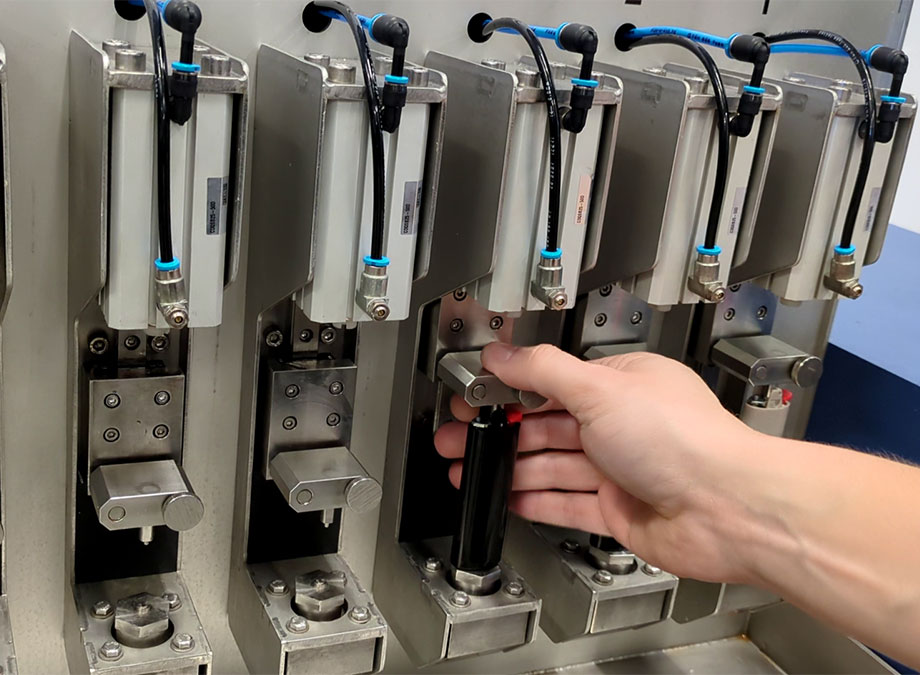

Product placement – Crash-Multi

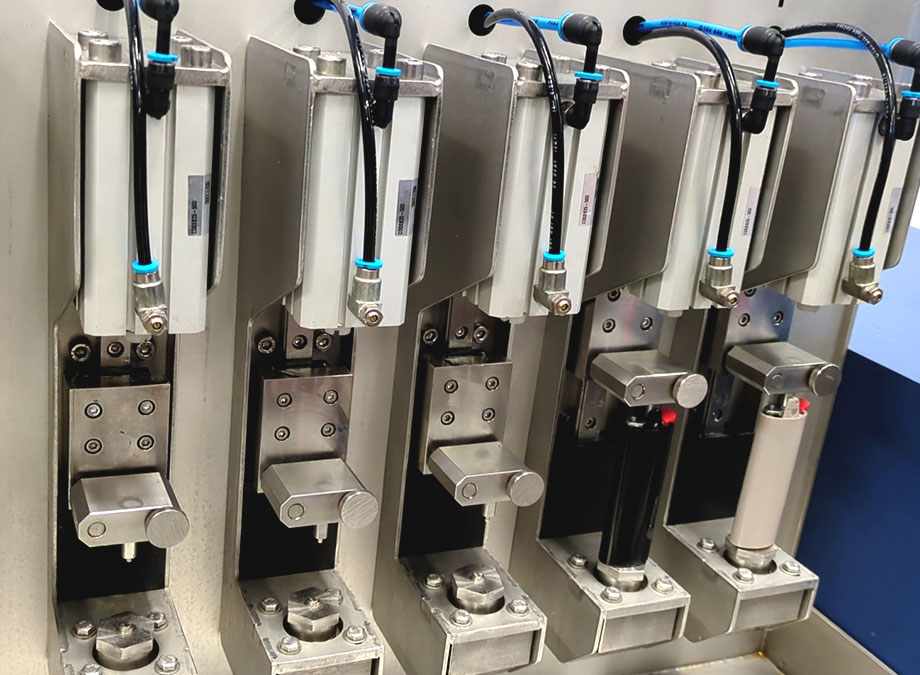

Installation and securing of a lighter - Product testable by the Crash-Multi
Burst and pressure testing – Crash-Multi | LF Technologies
Burst and pressure testing - Crash-Multi | LF Technologies
Burst testing and pressure generation bench | LF Technologies
Burst testing and pressure generation bench | LF Technologies
Pressure Generator and Burst
This automated burst testing bench simultaneously tests up to 16 products at a maximum pressure of 110 bar. It ensures complete safety and digital traceability thanks to software control accurate to 0.5 bar. It is the ideal tool for certifying the strength and compliance of your components in production or R&D.
Benefits of Crash-Multi
Optimize your inspection rates
A modular system capable of testing up to 16 samples simultaneously, resulting in significant time savings for industrial applications.
Protect your operators and your facilities
Complete protection thanks to the full enclosure, automatic clamping via hydraulic cylinders, and active risk monitoring.
Ensure the reliability of your measurements

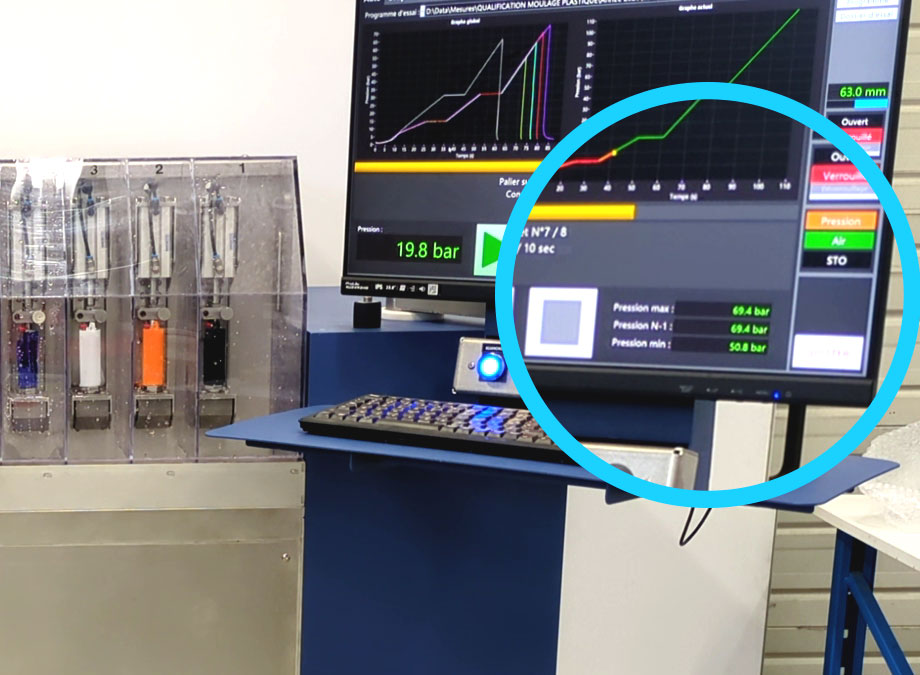

Precise control of the pressure generator enables leak and burst detection with an accuracy of ±0.5 bar.
Secure your data and ensure compliance
A fully automated process with digital archiving and automatic report generation for tamper-proof traceability.
TECHNICAL SPECIFICATIONS of the Pressure and Burst Test Bench
Characteristics | Crash-Multi |
Static pressure generator | |
Max pressure | 110 bar |
Pressure ramp-up rate | 0,5 - 2 bar/s |
Measurement accuracy | 0,5 bar |
Static pressure generator | |
Maximum force | 245 N (à 5 bar) |
Bench dimensions | |
Height | 1100 mm |
Depth | 620 mm |
Width | 1600 mm |
