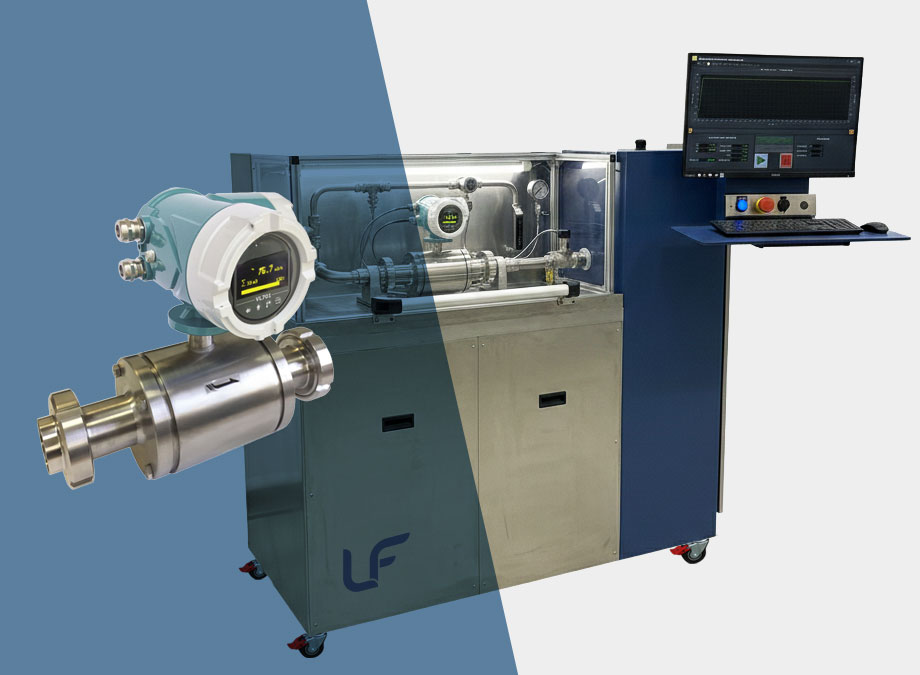

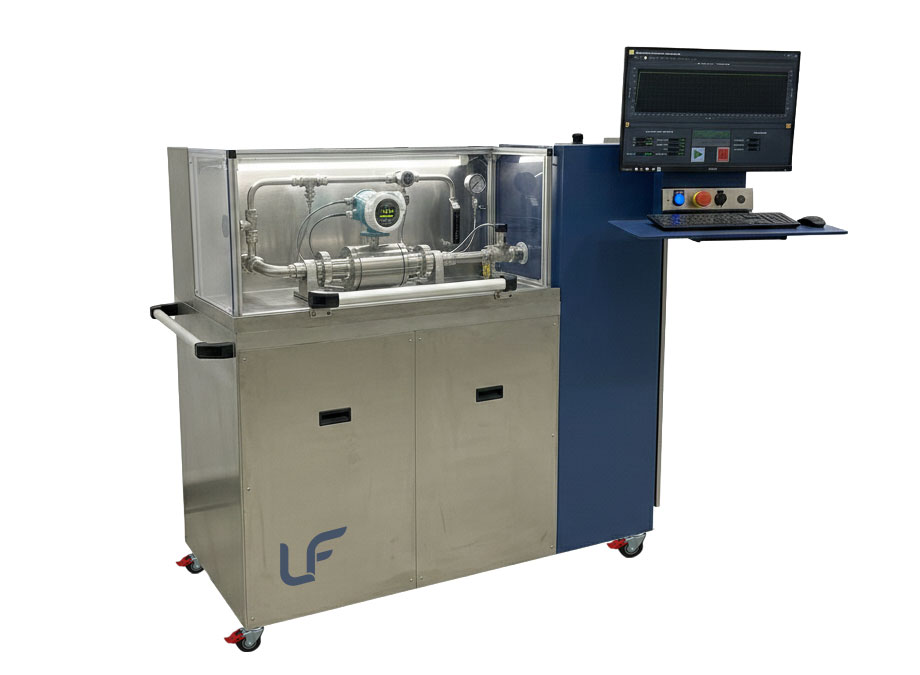

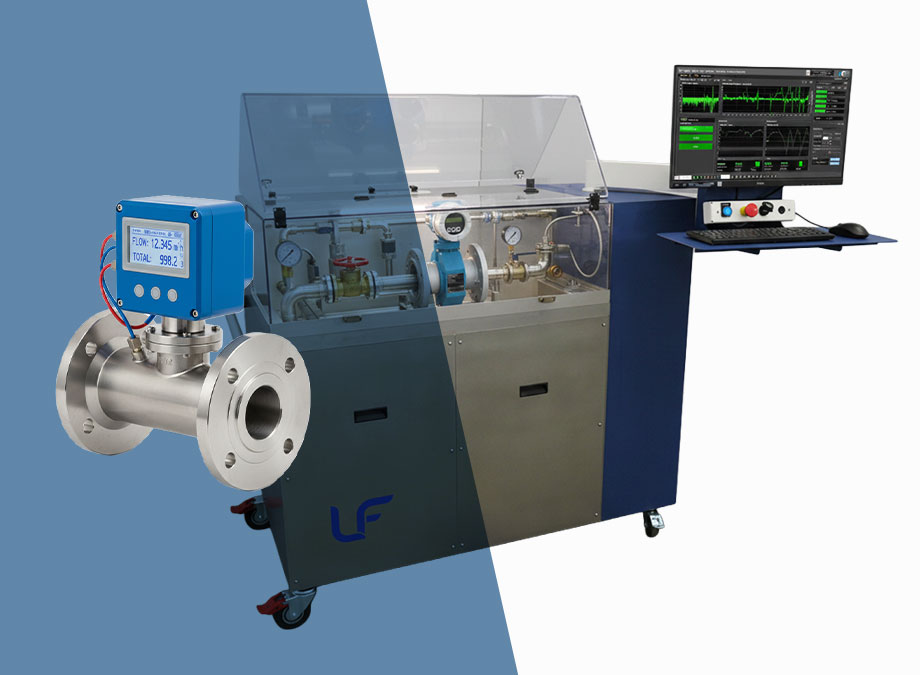

Flow meters calibration bench

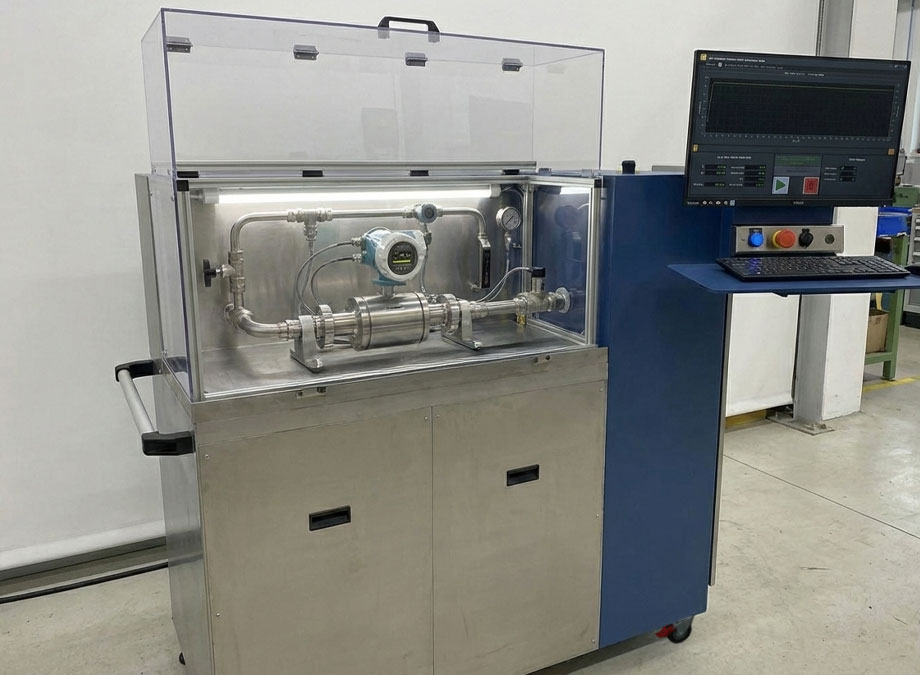

The LF Technologies flow meter calibration bench combines robustness and precision for industrial metrology. It calibrates and verifies flow meters in a controlled environment (temperature, pressure), ensuring full traceability of operations.

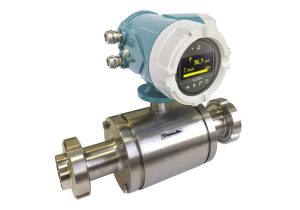

Products tested
Sector of activity
Presentation & Usage:
The LF Technologies flow meter calibration bench is used to calibrate, verify or adjust flow meters with full traceability. Ideal for industrial maintenance and quality control. This bench ensures performance control, compliance with standards and contributes to reducing operating costs.
Operating principles

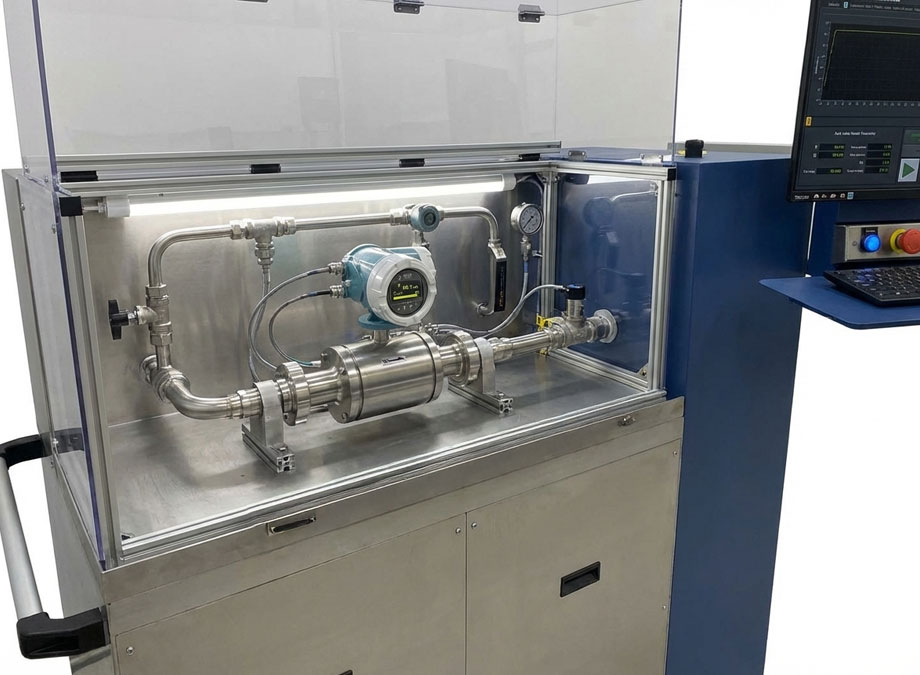

- The flow meter to be calibrated is connected to a hydraulic (or pneumatic) test line in a closed or open circuit.
- The test fluid (often water) is circulated via a servo pump.
- A pilot-operated control valve adjusts the flow rate to achieve the desired test levels.
- A master flow meter (reference standard) is placed in series or in parallel to compare measurements.
- The system performs flow rate steps to cover the entire measurement range of the sensor being tested.

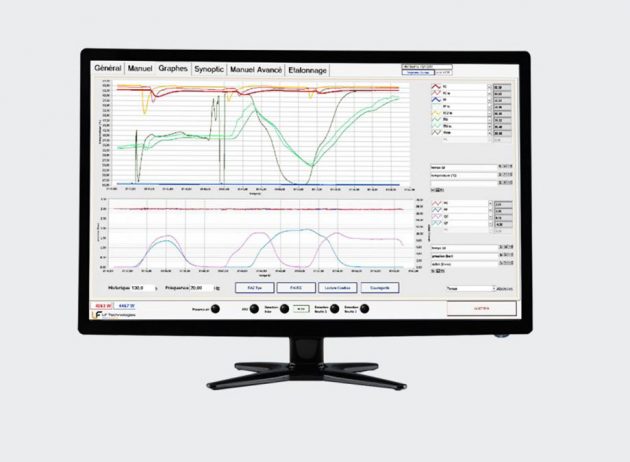

- The embedded software controls the sequences, records the data, calculates the deviations/uncertainties, and generates a calibration report.
- Compensation systems (temperature, pressure) can be added to ensure accuracy.
Bench developed to meet these standards:
Benefits of FLOW-CALIB
- Automated interface & reports
- Flexibility & modularity
- Time savings & reduction in downtime
- Robust construction & industrial materials
Automated interface & reports
Automatic bearing control, integrated traceability.
Flexibility & modularity

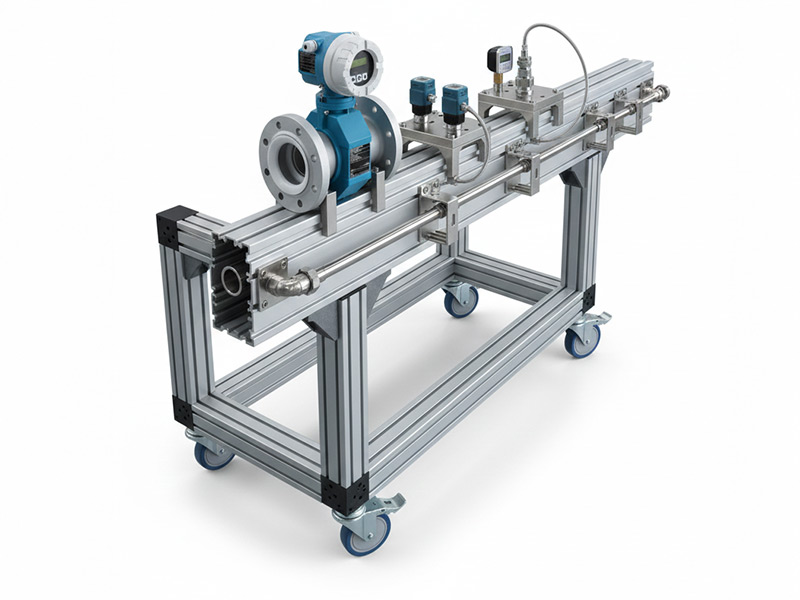

Possibility to adapt flow ranges, integrate several standards, add additional ranges.
Time savings & reduction in downtime
Calibration on site or at the customer’s premises to minimise process downtime (mobile bench model)
Robust construction & industrial materials
Stainless steel frame, high-quality piping, reliable components.
TECHNICAL SPECIFICATIONS of the Calibration Bench for Flow Meters
Elements | Flow-Calib |
Measurement ranges | 0.05 to 60 m³/h |
Bench accuracy | ±0,5 % |
Tank volume | 1,000 L |
Flow-setpoint accuracy | 1% |
OPTIONS
Thermal enclosure
Directly integrated into the test bench, the thermal chambers are capable of simulating extreme environments (from -180°C to +600°C) and are reproducible. The temperature is regulated and controlled during the test according to pre-set parameters (ramps and steps). Thermal chambers are ideal for carrying out long-term tests or for preparing a sample prior to testing. The independent chamber is heated using a gas or liquid bath, with a temperature gauge positioned as close as possible to the sample under test. Robotic rapid transfer systems minimise variations in product temperature between the climatic chamber and the test area.nvironments (from -180°C to +600°C) and reproducible. The temperature is regulated and controlled during the test according to pre-set parameters (ramps and steps). Thermal chambers are ideal for carrying out long-term tests or for preparing a sample prior to testing. The independent chamber is heated using a gas or liquid bath, with a temperature gauge positioned as close as possible to the sample under test. Robotic rapid transfer systems minimise variations in product temperature between the climatic chamber and the test area.
Temperature compensation

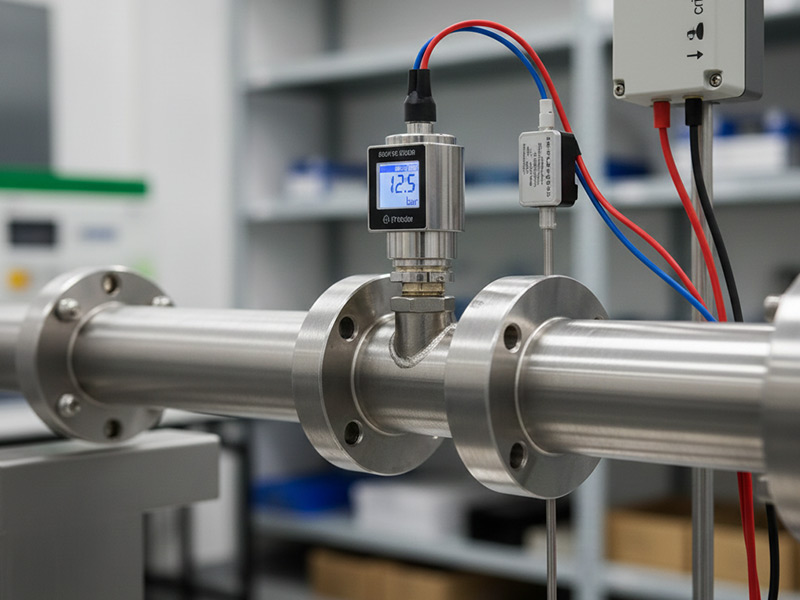

Temperature/pressure compensation (integrated sensors)

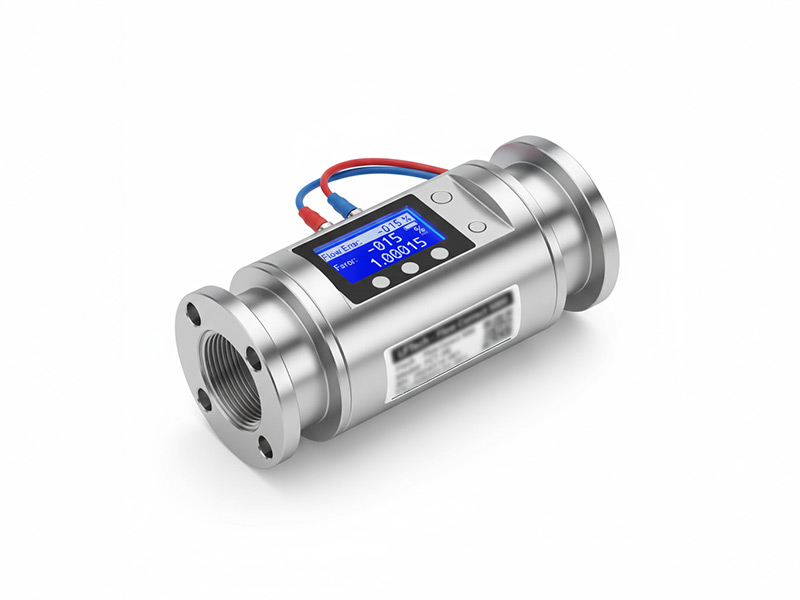

Linearization/automatic correction functions
Linearization/automatic correction functions

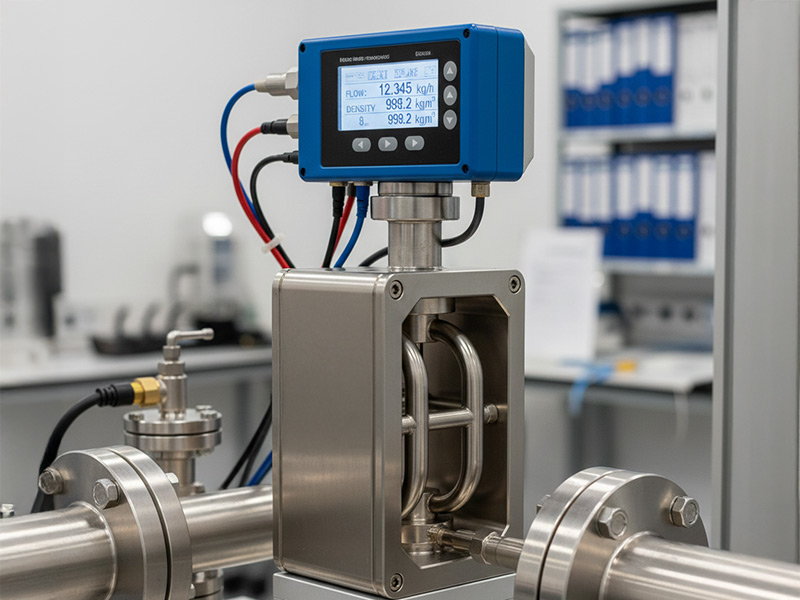

Multiple parallel standards to cover overlapping areas
Multiple parallel standards to cover overlapping areas
Mobile/onboard version

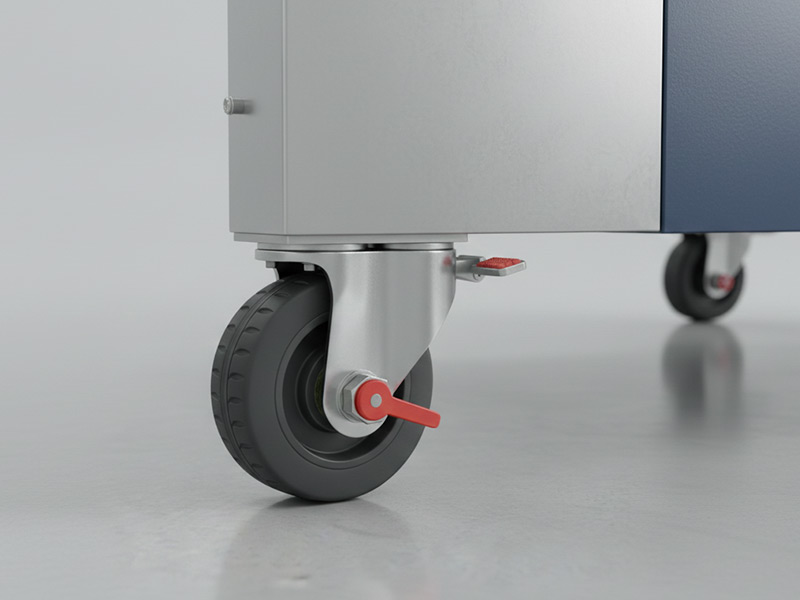

Mobile/onboard version for on-site calibration (onboard tank, compact design)
Customer applications
Would you like to find out more about hydraulic test benches?
Find out everything you need to know and much more!
Hydraulic performance bench for mixing valve
Hydraulic test bench for performance measurement, tests many products and has many applications.

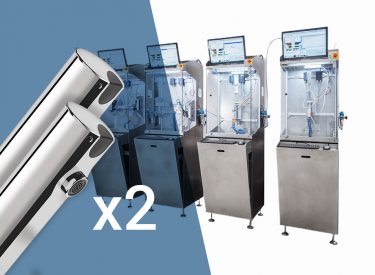

Hydraulic test bench for valve endurance | LF Technologies
Modular hydraulic test stand dedicated to endurance testing.
Thermostatic valve cartridge test bench
Designed for adjustment and control tests on thermostatic cartridges, this hydraulic test bench assesses tightness, antiscald, flow and temperature adjustment.
