Flush tank test bench
The Flush-Test validates the compliance of toilet cisterns with the
NF EN 14055 standard. It measures the volume, flow rate and impact force of the water,
while ensuring closed-loop recycling. Its modular frame and PC control system
guarantee flexible adaptation to the different cisterns being tested.

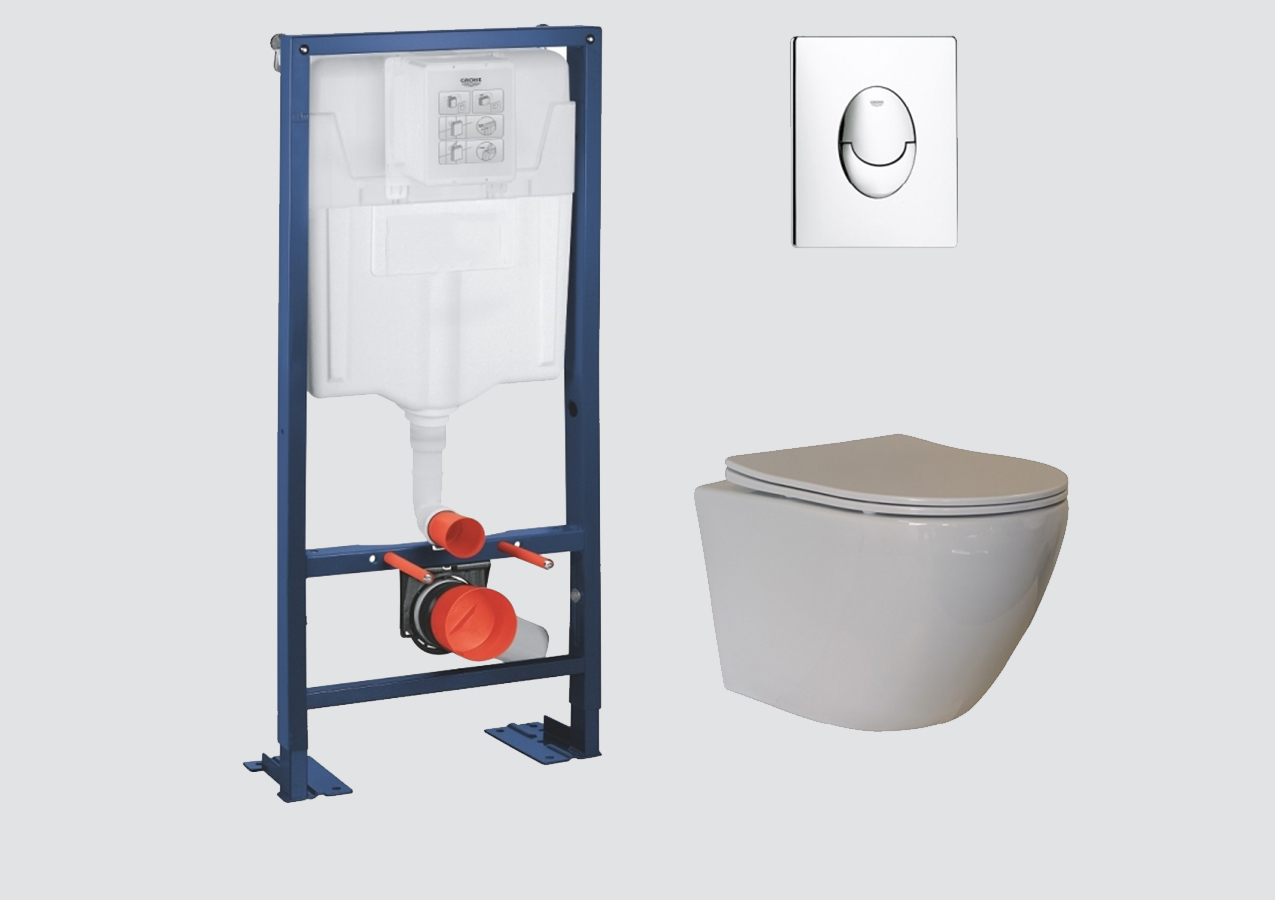

Products tested
Sector of activity
Main functions
The Flush-Test evaluates cistern performance by simulating
real-world operating conditions. It provides precise control of hydraulic
parameters to guarantee compliance with standards.
Key features :
- Accurate measurement of the volume of water flushed with each flush
- Testing different hunting levels
- Simulation of repeated cycles
- Measurement of the impact force of discharged water
- Software interface with result tracking and analysis
Operating mode
The Flush Test replicates the actual conditions of use of toilet cisterns to verify their compliance and reliability.
Tank installation
- Securing the tank to the bench with connection to the supply and drain
- Spacing adjustment for tank mounting
- Height adjustment of the tank
- Adjusting the flush activation system
- Impact force sensor adjustment
- Hydraulic connection
Test configuration: each test is automatic and configurable.
Test procedure:
- Measurement of flush volume and residual volume
- Flow measurement
- Measurement of the impact force of discharged water
- Overflow level measurement
Results analysis: Real-time visualisation and data export for validation.
Bench developed to meet this standard:
NF EN 14055
Advantages of the Flush-Test
- Guaranteed compliance
- Reliability and precision.
- Optimized interface
- Quality control
- Realistic simulation
Guaranteed compliance
tests performed according to NF EN 14055.
Reliability and precision.
Measurement of volume, flow rate, and impact force.
Optimized interface
Test configuration and export of results.
Quality control
Verification of the performance of the tanks tested.
Realistic simulation
Faithful reproduction of the conditions of use.
