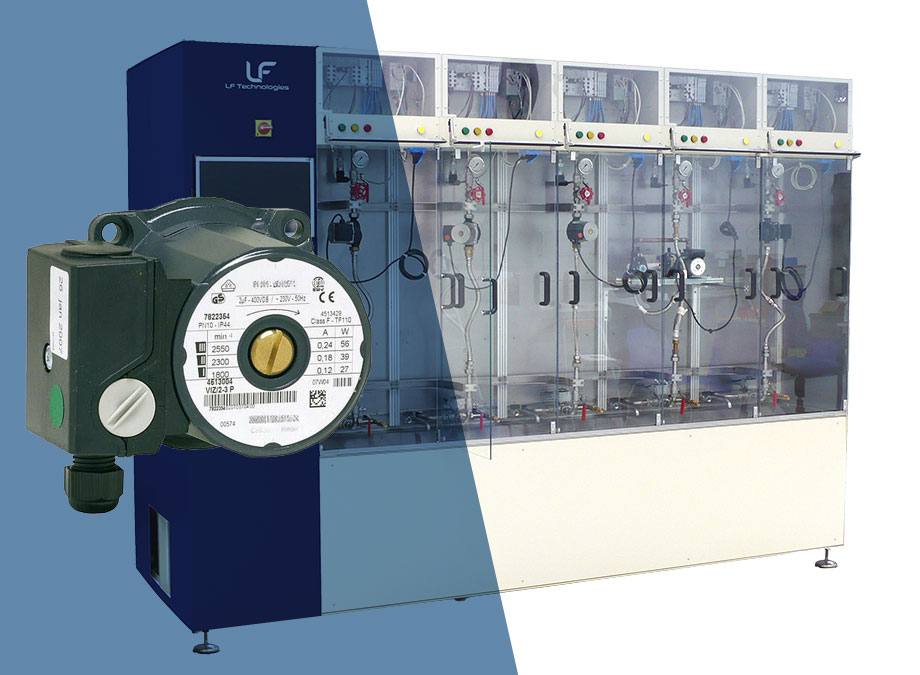

Cyclic Pressure and Temperature Test Bench

Main functions

The TC-PUMP test bench is designed to qualify hydraulic components subjected to accelerated aging conditions. Its design enables the simulation of real-world life cycles by combining precise mechanical and thermal stresses.

Operating mode

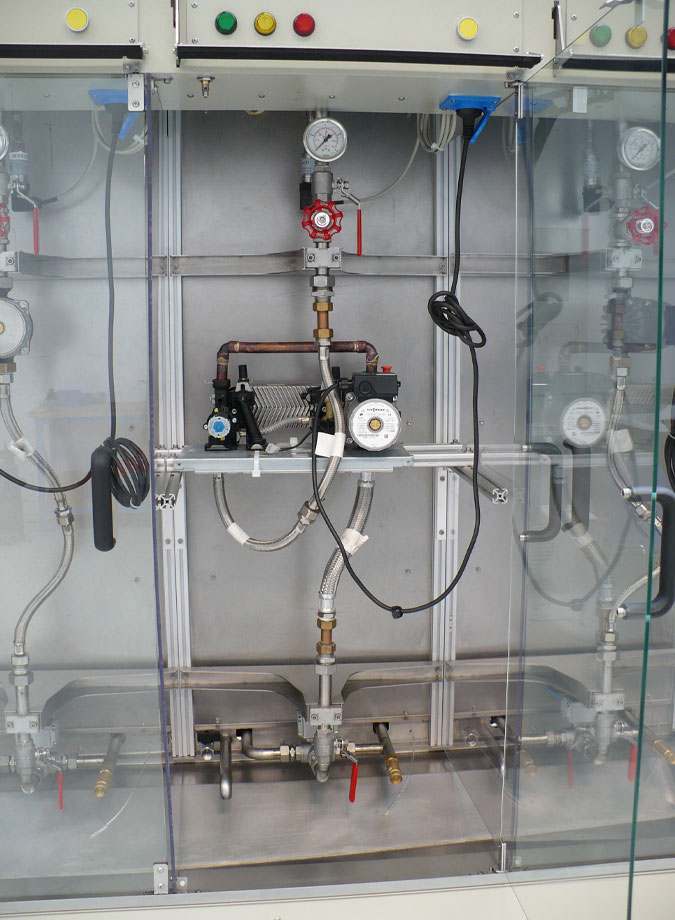

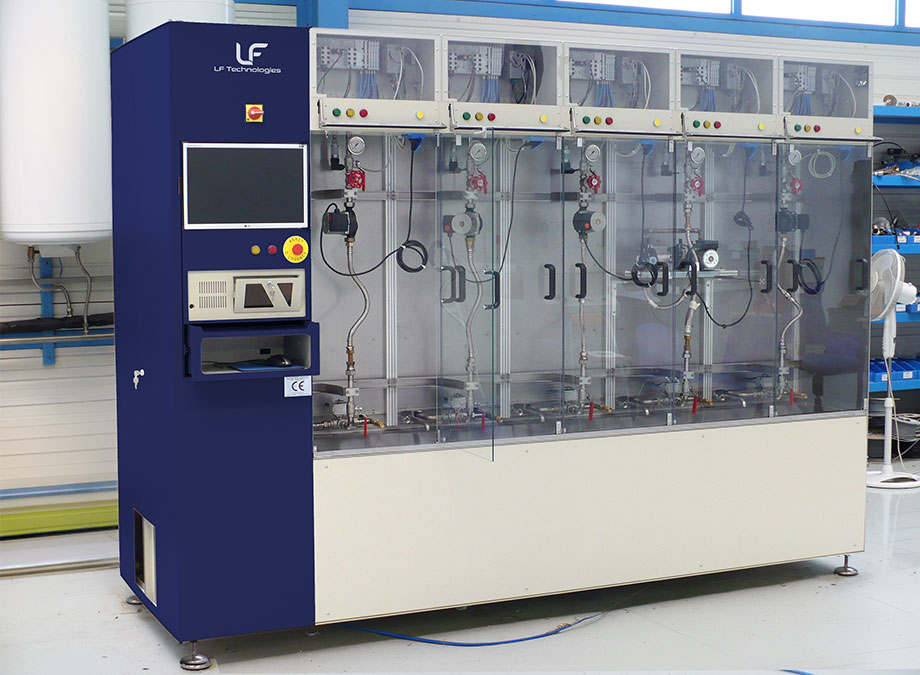

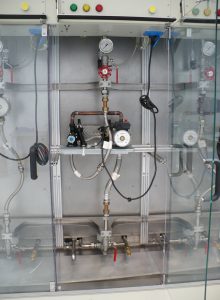

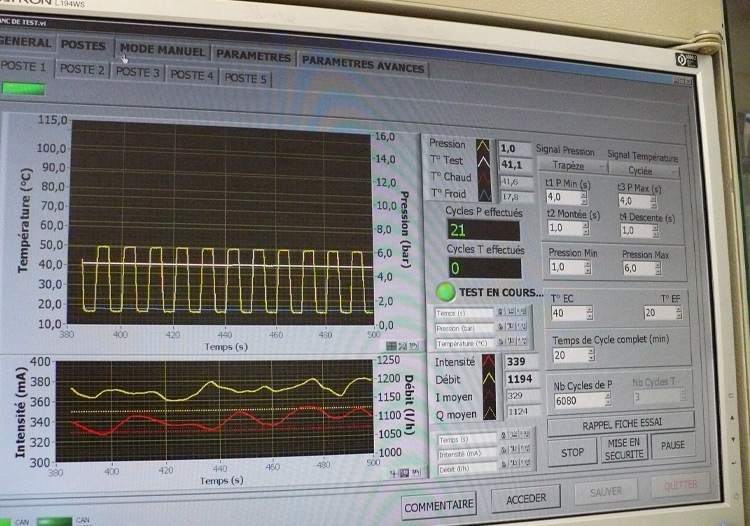

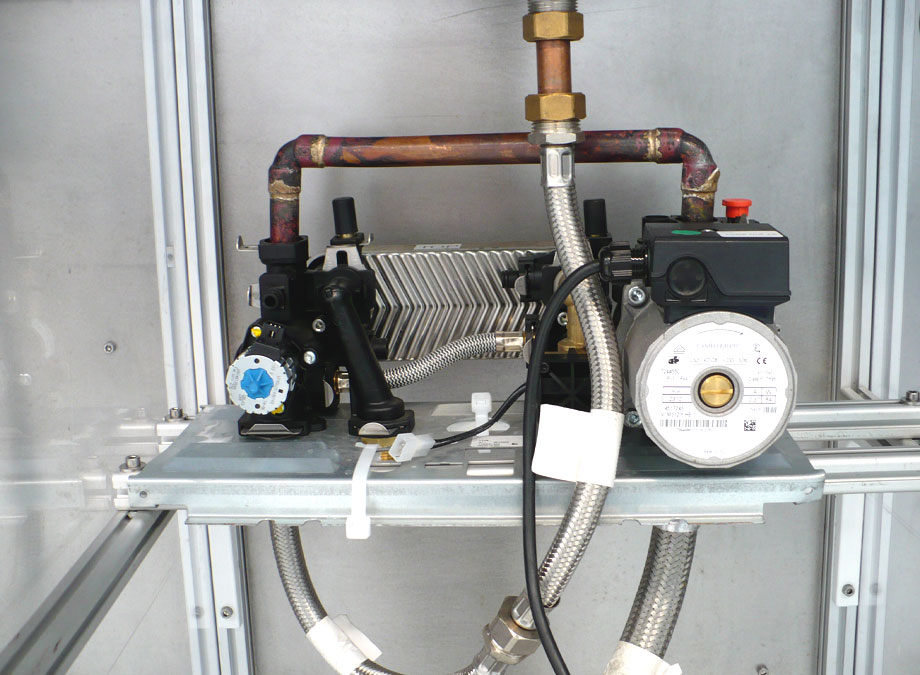

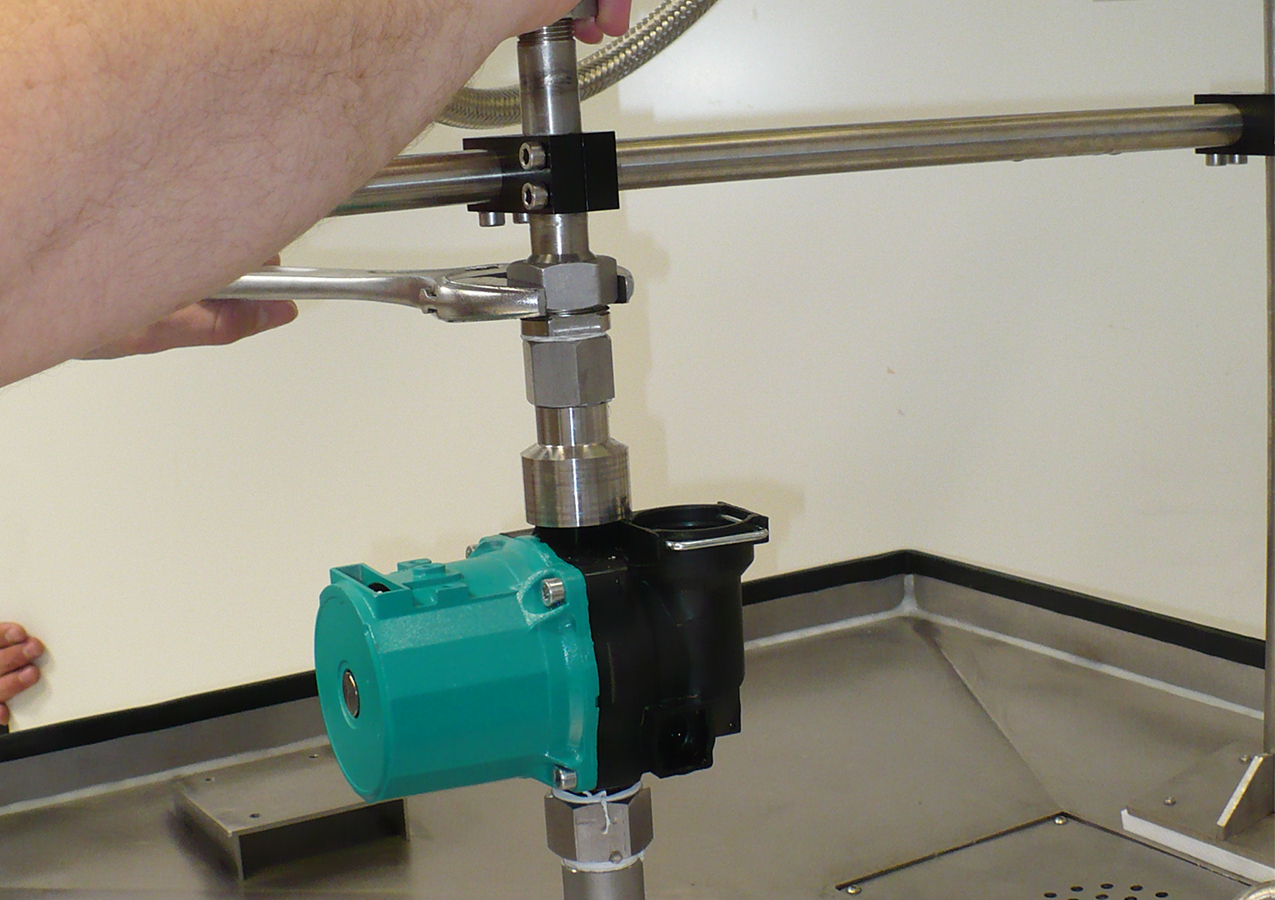

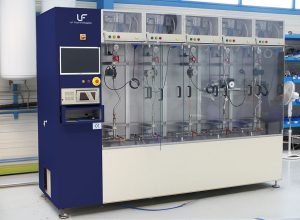

The TC-PUMP performs endurance tests on hydraulic equipment using pressure and temperature cycling. A piston, driven by a brushless servomotor and a ball screw, ensures precise pressure build-up without hydraulic shocks. The test bench simultaneously manages up to 5 identical and independent test stations. Each line is equipped with upstream and downstream shut-off valves, allowing a sample to be isolated without interrupting the cycles of the other channels. The entire system is controlled by dedicated software running in a LabVIEW environment, which allows for the programming of complex test routines (sinusoidal, step, etc.).

Bench specifications

• Testing capacity: 5 independent test stations.
• Pressure range: control range from 0.5 to 30 bar.
• Temperature control: Water temperature adjustable from ambient to 105°C.
• Temperature accuracy: controlled by a PT 100 sensor with direct safety protection via a 110°C thermostat.
• Actuator: servomotor with a stroke of 350 mm.
• Safety: enclosure enclosed by glass doors with automatic safety locks.
• Materials: piping, fittings, and frame made entirely of stainless steel.
• Power supplies: electrical (400 V three-phase + 240 V single-phase), compressed air (5 bar), and mains water (3 bar).
