Rain and wave simulation chamber
Reproduce extreme weather conditions in a controlled environment.

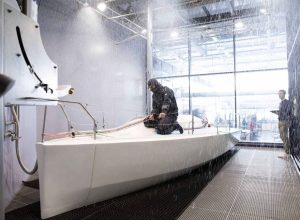

The Rain Room LF Technologies is a special custom-built machine that simulates heavy rain, water spray and dynamic waves in a controlled and safe environment. It uses a network of 150 nozzles and an industrial pump delivering 300 litres per minute at 6 bar, supplemented by a horizontal spray of 20 litres of water at 50 km/h. This solution is ideal for R&D validation, quality control and qualification of products exposed to water and weather conditions.
Products tested
Sector of activity
Features
The Rain Room LF Technologies is a special custom-built machine designed to simulate heavy rain, water splashes and dynamic waves in a safe and instrumented space.
It allows testing the water resistance, watertightness and weather resistance of products, systems or equipment under controlled and repeatable conditions. Ideal for product validation, R&D and quality control, the Rain Room replicates harsh environments without relying on natural conditions.
Key strengths
- High-intensity rain simulation using a network of 150 nozzles
- Industrial pump 300 L/min at 6 bar
- Simulation of horizontal wave projection

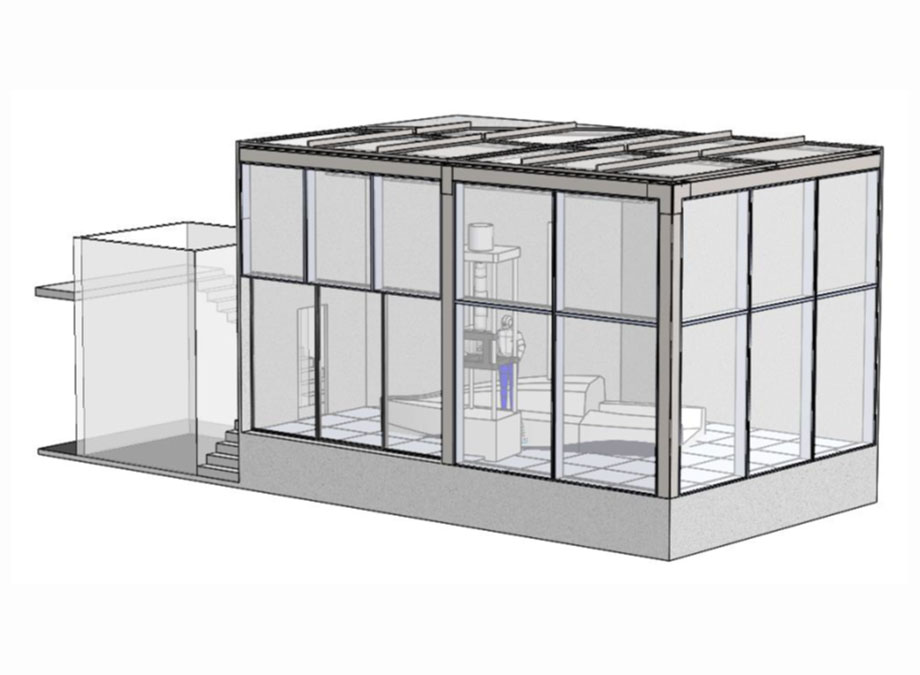

- Large test volume: 8.8 m × 5.8 m
- Integrated recovery basin
- Secure and controlled environment
Possible applications
- Waterproofing tests
- Validation of weather resistance
- Product quality control
- Research & Development
- Validation of prototypes
- Tests under simulated climatic conditions
- Qualification of systems exposed to water
High-intensity rain simulation
The Rain Room is equipped with a spray system designed to ensure even coverage across the entire test area.
Integrated equipment:
- 150 spray nozzles distributed to ensure even coverage
- A pump capable of delivering 300 litres/minute at 6 bar
- Various configurable intensity settings
Possible configurations:
- Continuous rain
- Tropical showers
- Pouring rain under pressure
- Extended or cyclical tests
Wave simulation / dynamic projection
In addition to vertical rain, the Rain Room incorporates a dynamic projection system that simulates high-energy water impacts.
Features:
- Horizontal projection of a volume of 20 litres of water
- Projection speed: 50 km/h (≈ 14 m/s)
Allows you to test:
- Impact resistance to water
- Sealing under dynamic pressure
- System behaviour in response to waves or violent projections
Simulation chamber rain & waves – Rain Room
The Rain Room LF Technologies is a special machine designed to simulate heavy rain and wave splashes in a controlled environment. It allows you to test the water resistance, watertightness and weather resistance of your products under controlled and repeatable conditions.
