Electric rotary actuator module
- Ease of integration
- Stand-alone system
- Position, speed and effort management;
- Can be controlled by an external setpoint (slave settings)
Products tested
Sector of activity
Features
Rotary actuator
Description
The electric rotary actuator is a servomotor equipped with torque measurement and absolute angular position measurement over one full revolution. The rotary actuator is capable of performing rotational movements. It can be controlled in terms of position, speed and torque. It is equipped with a splined hollow shaft that can accommodate a variety of tools. It can also be coupled to a linear actuator to combine translational and rotational movements (e.g. to operate single-control mechanical mixing valves).
Material characteristics
- Max. torque
from 3.7 to 25 N.m - Max. speed
30 to 214 rpm - Position, speed or torque control
- Transmission system possible by splines or the plate equipped with 4 tapped holes
- M12 8-pin connection (power + communication)
- Possibility to use a through shaft
- Integrated control electronics
- Movement parameterisation via dedicated application or direct Ethernet communication for integration
Technology
- Stepper motor
- Integrated dimmer
- Absolute position measurement
- Integrated force and torque measurement
connecteurM12
connecteurM12-wire-list-rotatif
Plan actionneur Rotatif
tableau-descriptif-technique
Tableau Descriptif Technique Actionneur Rotatif
Technical Description Rotary Actuator
Montage actionneur rotatif
Mounting the rotary actuator
Exemple de montage pour robinetterie
Example of installation for taps
Montage actionneurs
Mounting actuators
Actionneur Rotatif
Rotary actuator
Plan-connecteur-actionneur-lineaire-new
Plan Connector Linear actuator
mitigeur-thermostatique

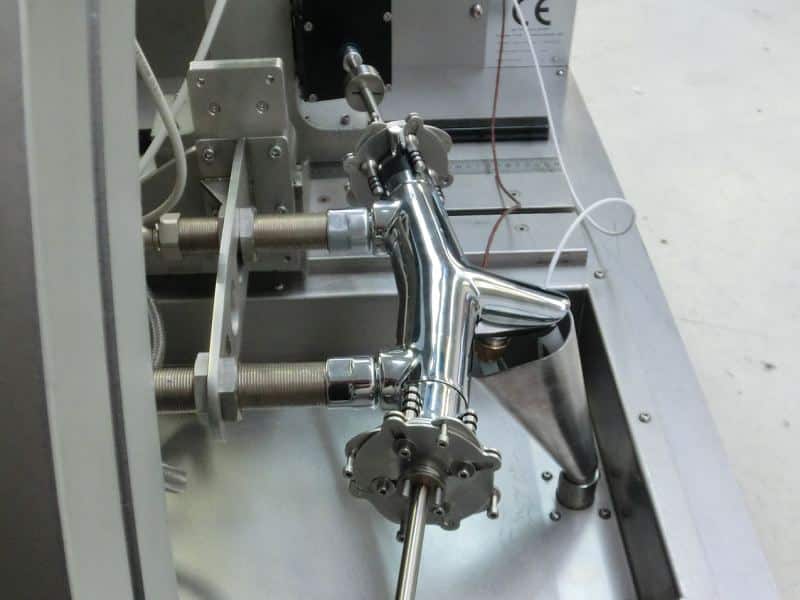

Two rotary actuators are positioned on the thermostatic mixing valves to initiate a complete test in accordance with NF3 standards.
