Subsea electric actuator

Ref : Actuator XAR-B

<ul> <li>Immersion 150 m</li> <li>Torque 35 to 70 Nm</li> <li>Stroke >360</li> <li>Absolute position control</li> <li>Several communication protocols</li> </ul>

Do you have an underwater equipment project?

+33 2 52 56 04 20

Request a quote

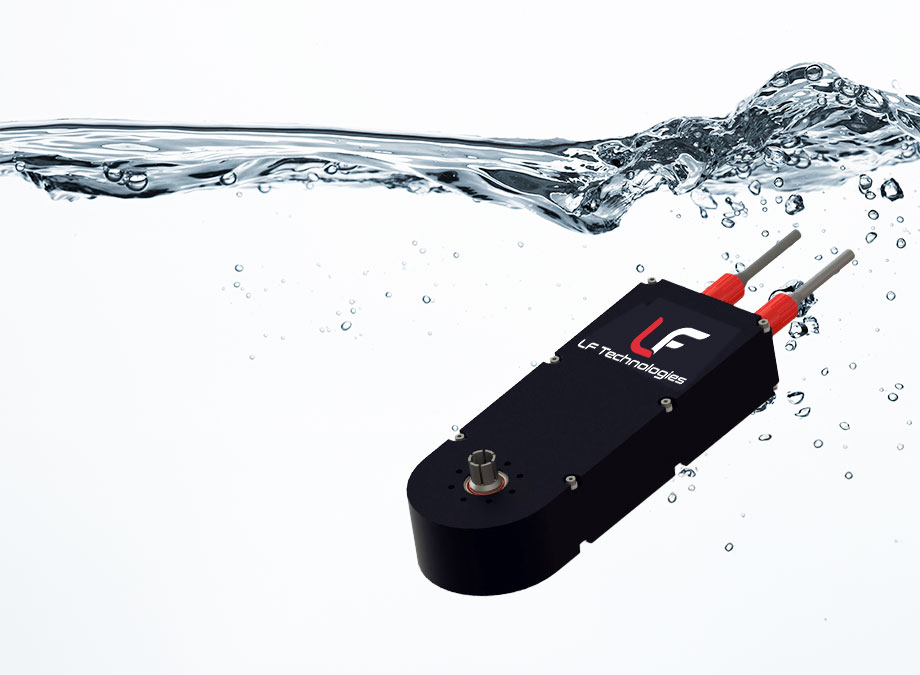

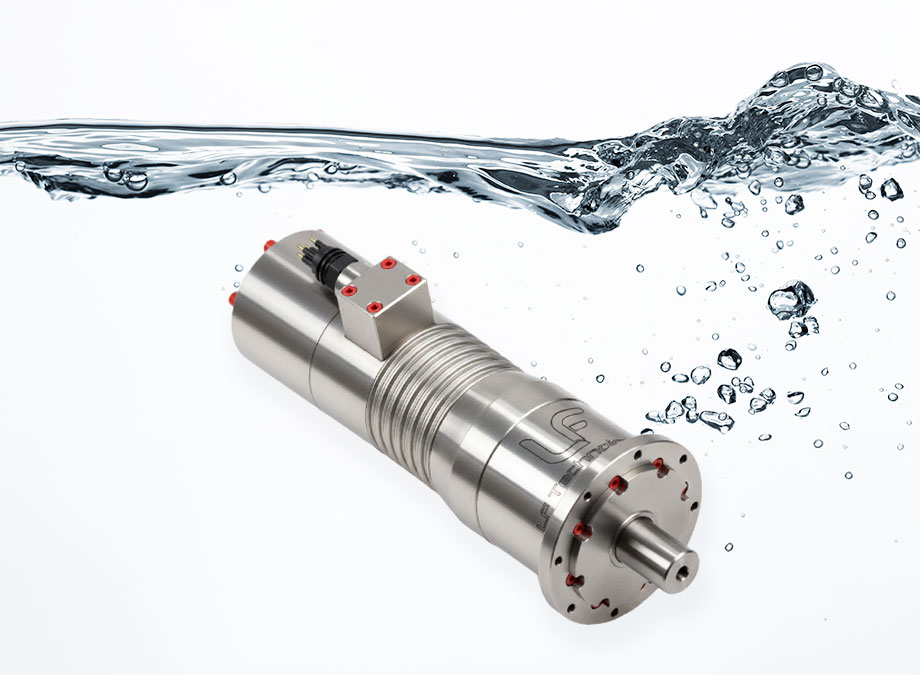

The XAR-B range of subsea rotary actuators from LF Technologies are submersible electric rotary actuators specially developed for subsea applications.
Their compact design with a hollow shaft makes them easy to fit on small vehicles to operate components such as rudders, flaps, valves, etc.

Features of the XAR-B underwater rotary actuator :

Integrated control: on-board electronics for precise control of position and speed directly in the actuator.
Absolute position measurement: integrated absolute position measurement: no need to search for zero.
Multiple communication protocols: compatible with several protocols such as CAN, RS232, RS485, Ethernet TCP, Ethernet UDP, Modbus TCP, with customisation on request.
Flexible mounting: a range of mounting and drive options for easy mechanical integration into a variety of subsea systems.

Validation and testing of XAR-B underwater rotary actuators

All submarine rotary actuators developed by LF Technologies are fully tested in-house, eliminating the need for additional testing:

Full functional tests: tests carried out in air and in immersion under real load;
Rigorous tightness tests: validation of tightness up to maximum permissible pressure.
Verification of communication protocols: checks that the protocol chosen by the customer is operating correctly (CAN, RS232, RS485, Ethernet TCP, Ethernet UDP, Modbus TCP, protocols on request).
Full energy analysis: measurement of current and power consumption according to several usage scenarios.

Features on request:

Supply voltage
Communication protocol
Materials
Electromechanical brake
Electrical connectors
Mechanical interfaces and fixings

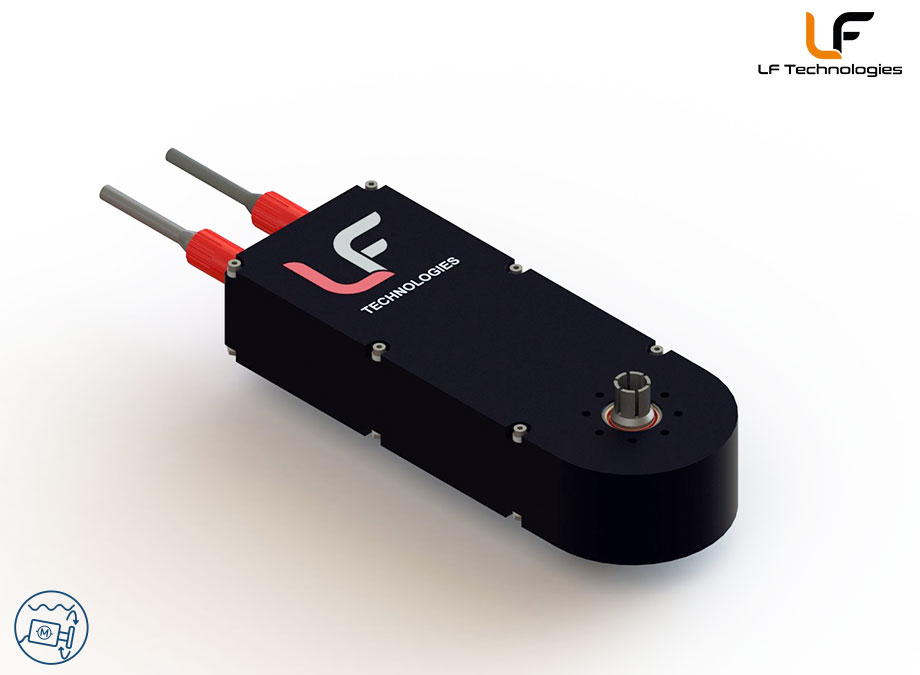

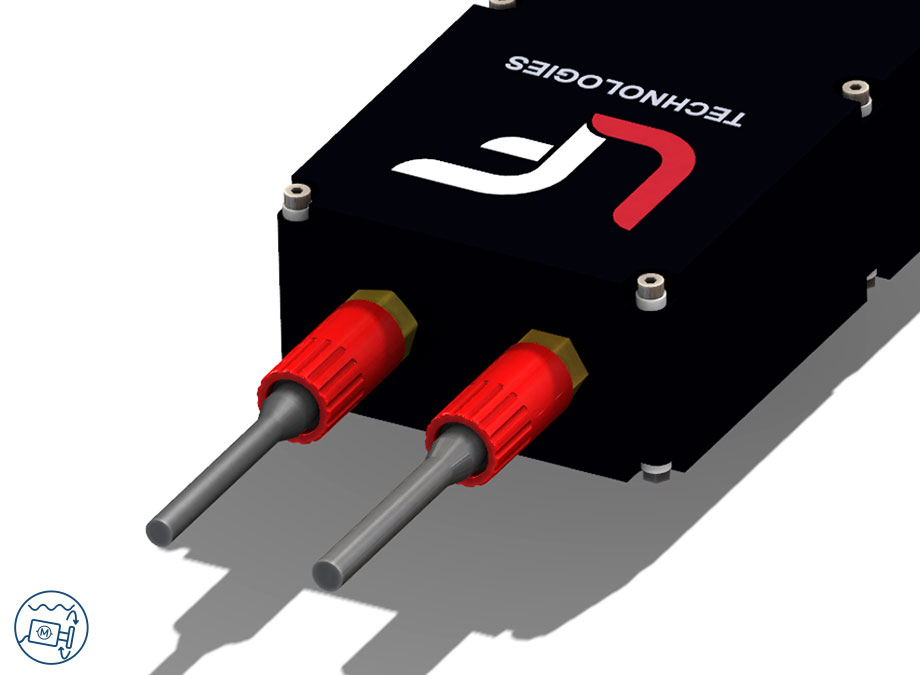

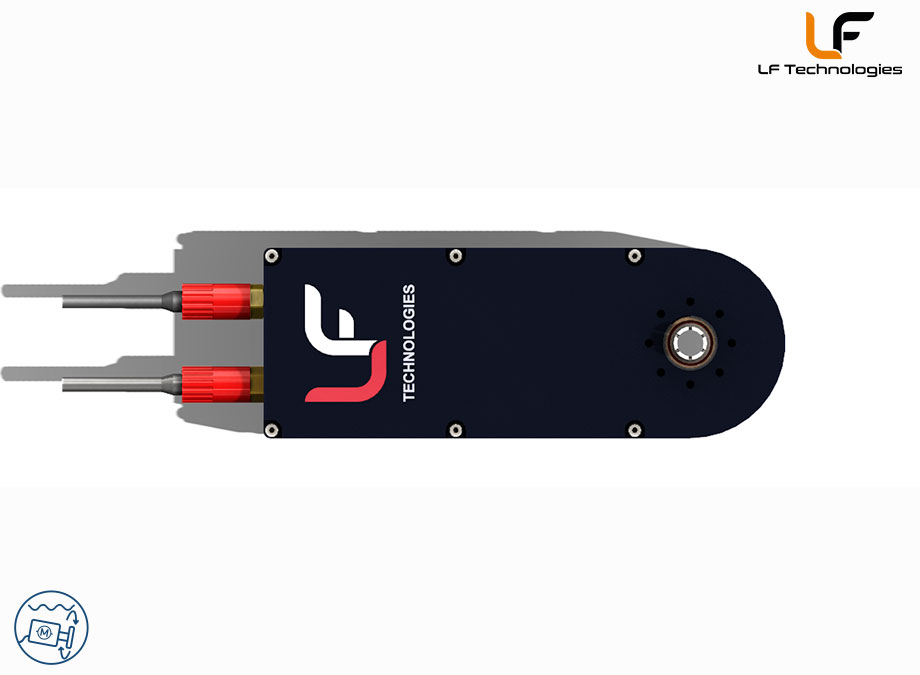

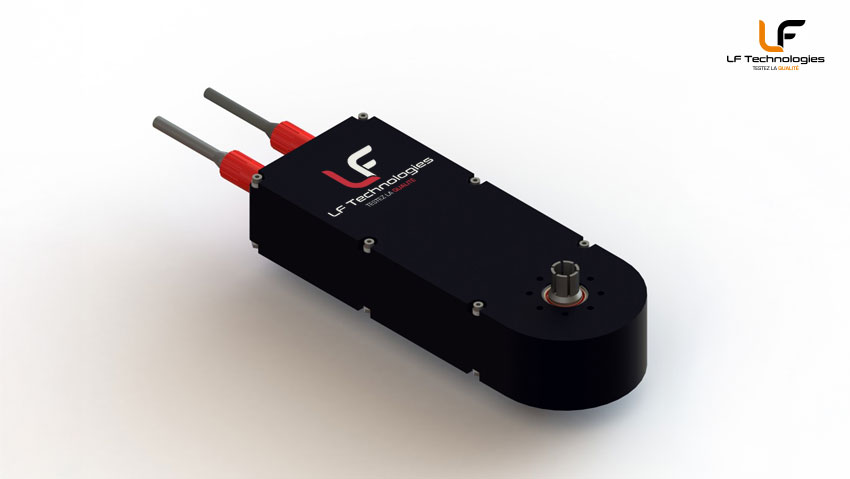

Actuator SUBSEA – XAR-B

Subsea Rotary Actuator | LF Technologies

Actuator XAR-B | LF Technologies

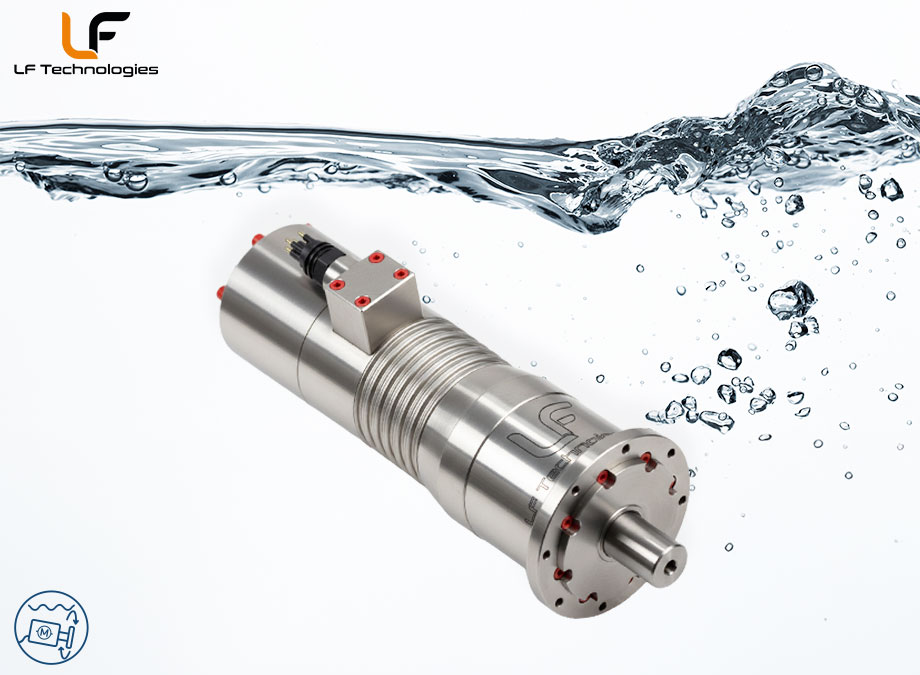

XAR-B Subsea Actuator - Maximum depth 150 msw

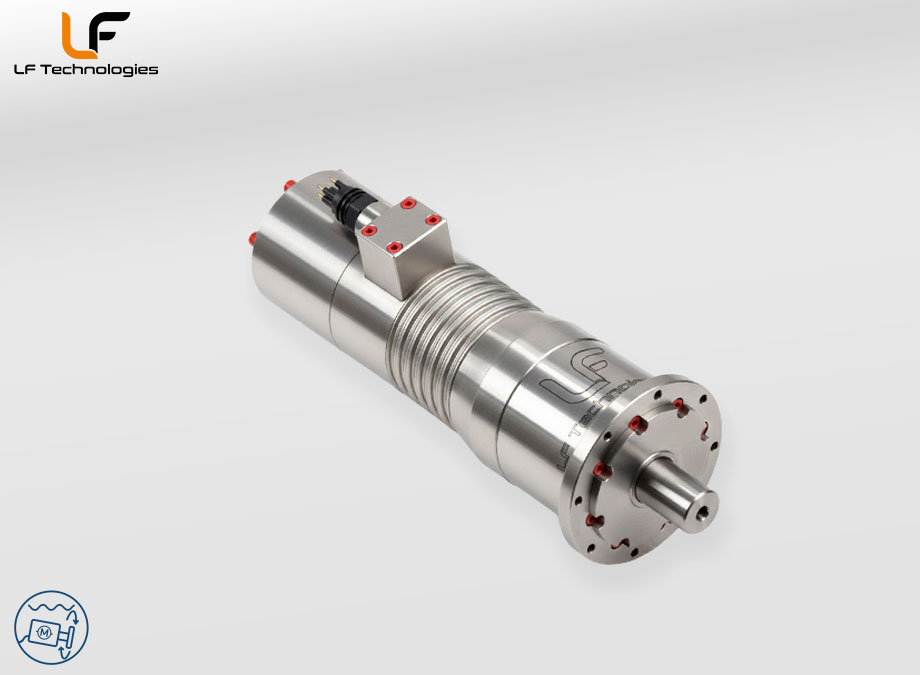

Subsea Actuator XAR-B

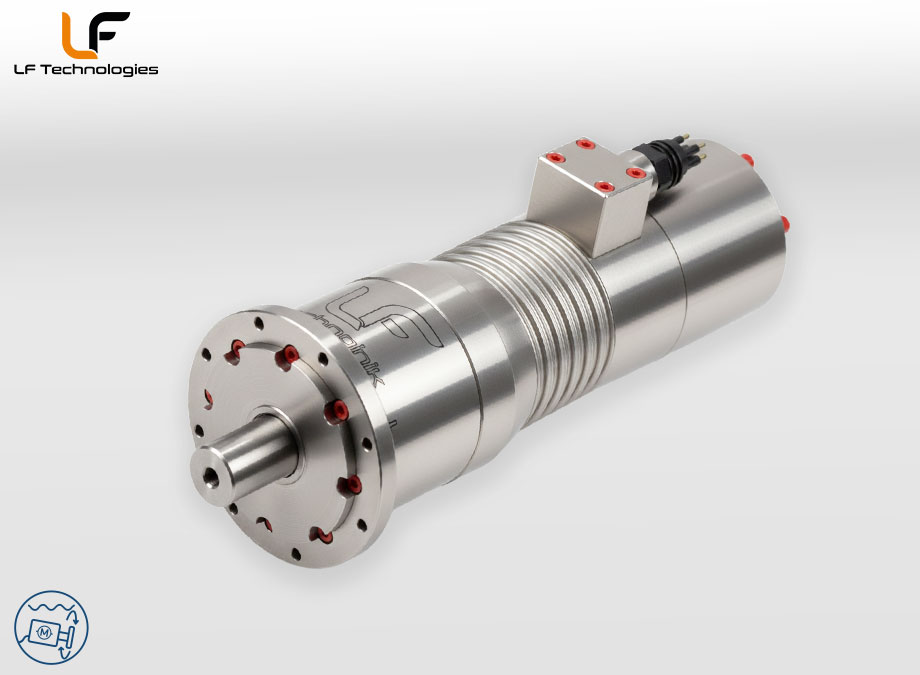

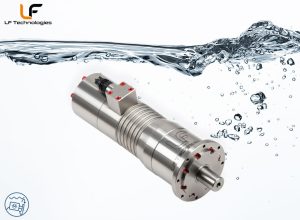

XAR-B Subsea Actuator - Maximum torque: 70 Nm

TECHNICAL DATA Subsea electric actuator – XAR-B range

Specifications	XAR-B-70-50	XAR-B-70-80	XAR-B-70-100
Max depth	150 msw* /15 bar	150 msw* /15 bar	150 msw* /15 bar
Torque (Nm)	35 Nm	56 Nm	70 Nm
Max speed rpm (at 48 Vdc)	60	37.5	30
Mass	7kg	7kg	7kg
Absolute position measurement	± 0.2°	± 0.2°	± 0.2°
Supply voltage	24 - 72 Vdc	24 - 72 Vdc	24 - 72 Vdc
Max current	4.8 A	4.8 A	4.8 A
Connector	1x SubConn 8 contacts	1x SubConn 8 contacts	1x SubConn 8 contacts
Connector orientation	Rear-facing, front-facing, radial or tangential	Rear-facing, front-facing, radial or tangential	Rear-facing, front-facing, radial or tangential
Brake	Optional	Optional	Optional
Body and rod material	316L stainless steel or Grade 5 titanium	316L stainless steel or Grade 5 titanium	316L stainless steel or Grade 5 titanium
*Meter Sea Water

Download the 3D file - XAR-B-70

Specifications	XAR-B-110-50	XAR-B-110-80	XAR-B-110-100
Max depth	150 msw* /15 bar	150 msw* /15 bar	150 msw* /15 bar
Torque Nm	140 Nm	215 Nm	280 Nm
Max speed rpm (at 48Vdc)	39	24	19
Weight	28kg	28kg	28kg
Absolute position measurement	± 0.2°	± 0.2°	± 0.2°
Supply voltage	24 - 72 Vdc	24 - 72 Vdc	24 - 72 Vdc
Max current	11 A	11 A	11 A
Connector	2x SubConn 8 contacts	2x SubConn 8 contacts	2x SubConn 8 contacts
Connector orientation	Backward, forward, radial or tangential	Backward, forward, radial or tangential	Backward, forward, radial or tangential
Brake	Optional	Optional	Optional
Body and shaft material	316L stainless steel or Grade 5 titanium	316L stainless steel or Grade 5 titanium	316L stainless steel or Grade 5 titanium
*Meter Sea Water
