Autonomous subsea electric actuator

Immersion 150 m
Torque 50 to 200 Nm
60° stroke
Absolute position control
Several communication protocols

Do you have a submersible equipment project?

The XAR-A range of subsea rotary actuators from LF Technologies are submersible electric rotary actuators specially developed for subsea applications.
Thanks to their radial output and hollow through shaft, these actuators are particularly well suited to high-torque control surface manoeuvres over limited travels and can be mounted directly around the manoeuvring shaft. Their high dynamics ensure rapid changes of direction.

Features of the XAR-A underwater rotary actuator :

Integrated control: on-board electronics for precise control of position and speed directly in the actuator.
Absolute position measurement: integrated absolute position measurement: no need to search for zero.
Multiple communication protocols: compatible with several protocols such as CAN, RS232, Ethernet TCP, Ethernet UDP, Modbus TCP, with customisation on request.
Flexible mounting: a range of mounting and drive options for easy mechanical integration into a variety of subsea systems.
Daisy-chaining: each actuator is fitted with 2 connectors (1 In and 1 Out) enabling several actuators to be daisy-chained to limit the amount of wiring required on your system.

Validation and testing of XAR-A underwater rotary actuators

All submarine rotary actuators developed by LF Technologies are fully tested in-house:

Full functional tests: tests carried out in air and in immersion under real load;
Rigorous tightness tests: validation of tightness up to maximum permissible pressure.
Verification of communication protocols: checks that the protocol chosen by the customer is operating correctly (CAN, RS232, Ethernet TCP, Ethernet UDP, Modbus TCP, protocols on request).
Full energy analysis: measurement of current and power consumption according to several usage scenarios.

Features on request:

Supply voltage
Communication protocol
Materials
Electromechanical brake
Electrical connectors
Mechanical interfaces and fixings

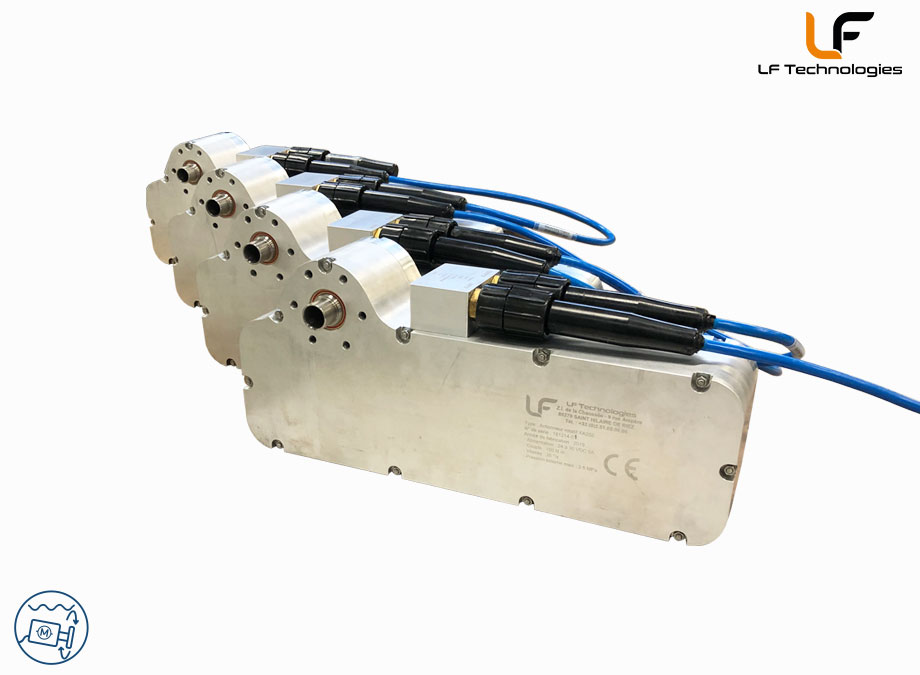

Actionneur rotatif pour sous-marin et équipements offshores – zoom rotation

Rotary actuator for submarines and offshore equipment - zoom rotation

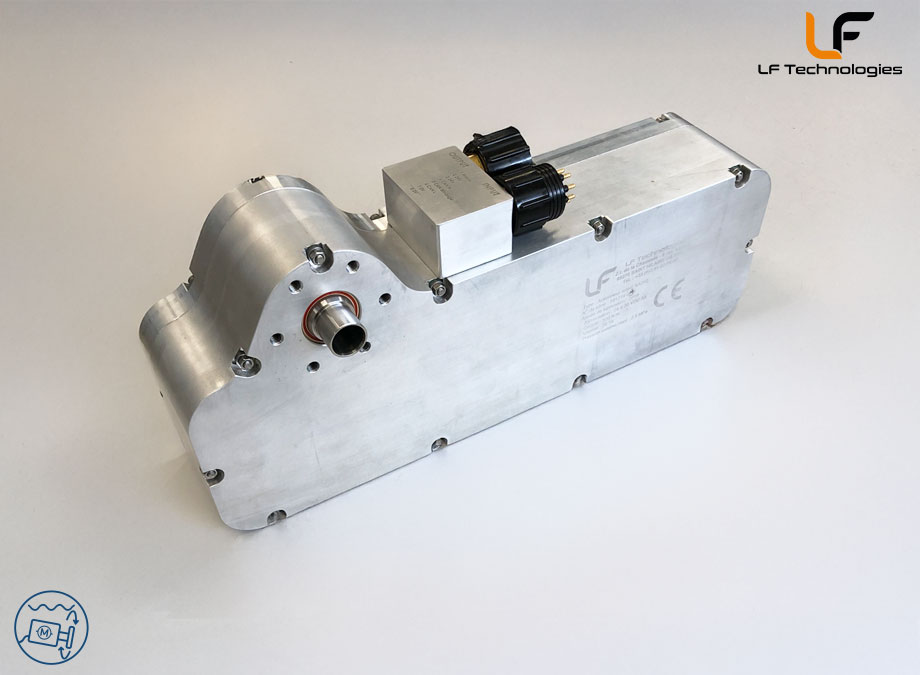

Actionneur rotatif pour sous-marin et équipements offshores – zoom rotation

Rotary actuator for submarines and offshore equipment - zoom rotation

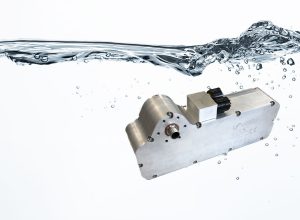

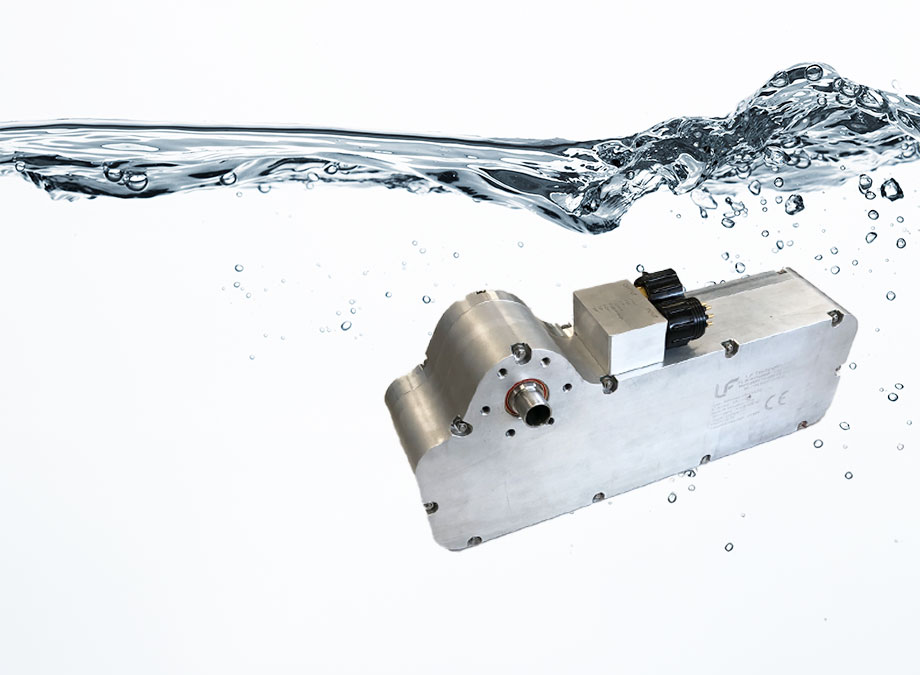

Actionneur rotatif pour sous-marin et équipements offshores & subsea

Rotary actuator for submarines and offshore & subsea equipment

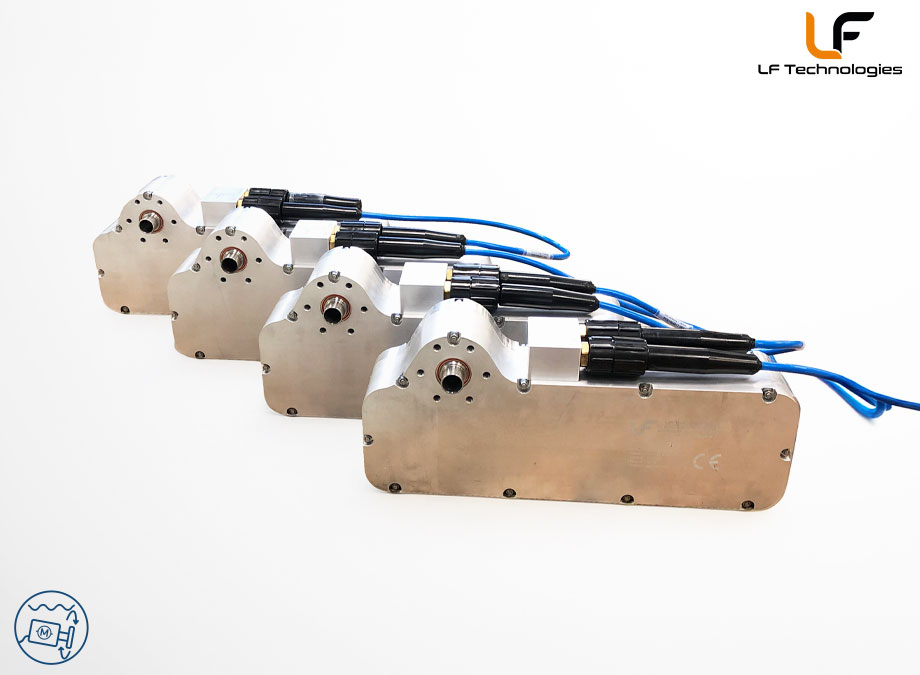

Actionneur rotatif pour sous-marin et équipements offshores

Rotary actuator for submarines and offshore equipment

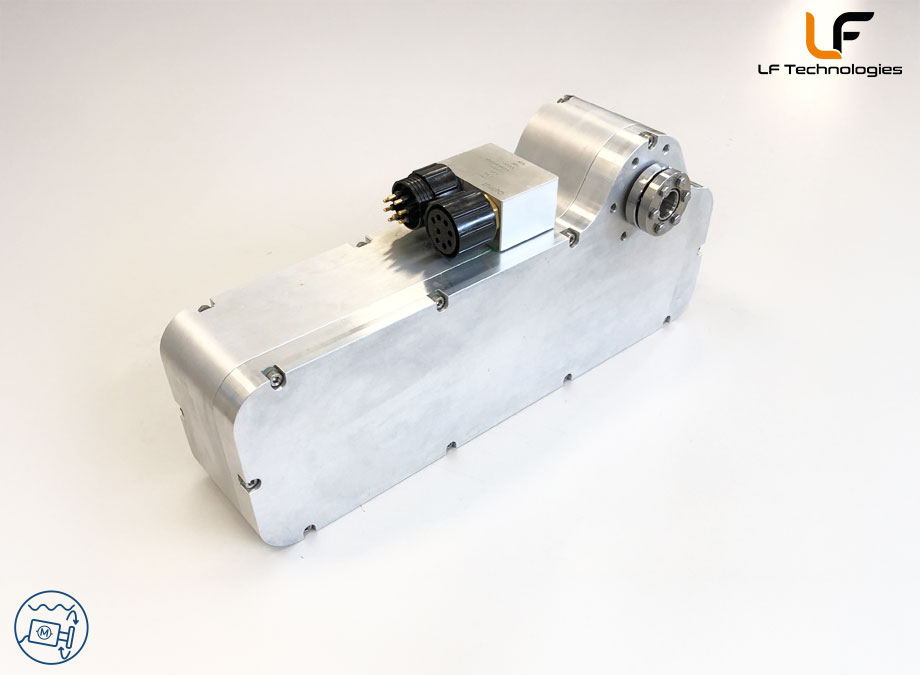

Actionneur rotatif pour sous-marin et équipements subsea

Rotary actuator for submarines and subsea equipment

TECHNICAL DATA Subsea electric actuator XAR-A range

Specifications	XAR-A/50	XAR-A/100	XAR-A/200
Max depth	150 msw* /15 bar	150 msw* /15 bar	150 msw* /15 bar
Max working torque	50 Nm	100 Nm	200 Nm
Max speed (at 72Vdc)	100°/s	60°/s	30°/s
Travel	± 30°	± 30°	± 30°
Absolute position measurement	± 0.2 mm	± 0.2 mm	± 0.2 mm
Supply voltage	24 - 72 Vdc	24 - 72 Vdc	24 - 72 Vdc
Max. current	5 A	5 A	5 A
Connector	1x SubConn 8 contacts	1x SubConn 8 contacts	1x SubConn 8 contacts
Connector orientation	radial, parallel or perpendicular	radial, parallel or perpendicular	radial, parallel or perpendicular
Brake	Optional	Optional	Optional
Shaft	Solid or hollow	Solid or hollow	Solid or hollow
Coupling	Shrink disc, Groove, Key	Shrink disc, Groove, Key	Shrink disc, Groove, Key
Body material	Aluminium or 316L stainless steel or grade 5 titanium	Aluminium or 316L stainless steel or grade 5 titanium	Aluminium or 316L stainless steel or grade 5 titanium
Shaft material	316L stainless steel or grade 5 titanium	316L stainless steel or grade 5 titanium	316L stainless steel or grade 5 titanium
*Metre Sea Water
