Wire Cutting Machine on Rotary Table
- Rotary table for horizontal, vertical and bevel cutting
- Ability to cut a wide range of materials, including flexible materials (insulation foam, packaging foam, etc.)
- Quick set-up and cutting time
- Accuracy of cutting
- Easy programming
Functionality
Reproduce extreme weather conditions in a controlled environment. Discover the LF Technologies rain simulation chamber. Abrasive wire cutting allows cuts to be made with a very fine “saw cut” and without a preferential direction (possibility of cutting in all directions).
Technology
- Turntable for 360° cutting
- Automatic optimization of the feed speed according to the cutting force
- Optimisation of the feed speed according to the bending radius and change of direction
- Automatic wire breakage detection
Benefits
- Ability to cut a wide range of materials, including flexible materials (insulation foam, packaging foam, etc.)
- Quick set-up and cutting time
- Accuracy of cutting
- Easy programming
module-cutting-wire-abrasive
Abrasive wire cutting module
Exemple de découpe réalisée
Example of a cut made with a wire cutting machine
Machine de découpe à fil
Wire cutting machine
Découpage par fil abrasif
Machine de découpe à fil abrasif
Abrasive wire cutting machine

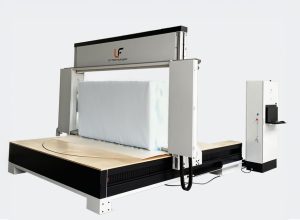

Machine de découpe à fil abrasif pour mousse isolante
Abrasive wire cutting machine for insulation foam
Advantages of the MO-D-FIL – Abrasive Wire Cutting Machine
Turntable
Our machine features a Turntable for effortless 360° cutting
Cutting complex shapes
Our machine allows you to cut complex or non-complex shapes on a wide range of materials.

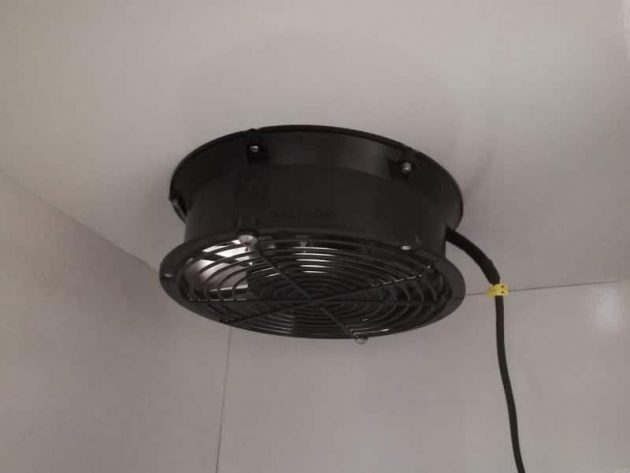

Keeps machines clean
Ensures the cleanliness of the machine and products for machining operations;

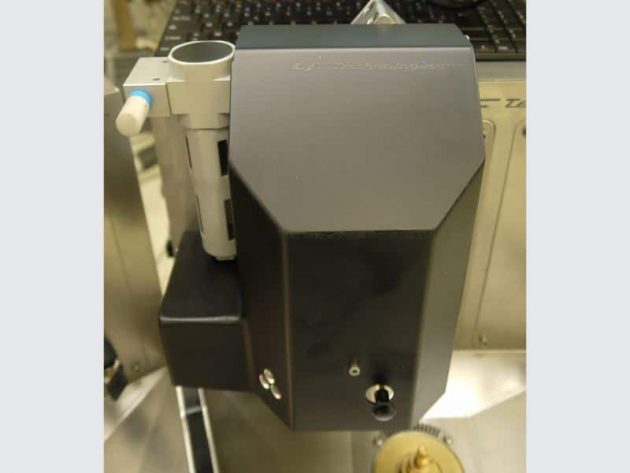

Sécurité des opérateurs
Operator safety with respect to MO smoke emissions
TECHNICAL SPECIFICATIONS of the Abrasive Wire Cutting Machine with Rotating Table
Specifications | Mo-D-Fil-1200 | Mo-D-Fil-2400 |
Work area | ||
Cutting table width | 1 200 mm | 2 400 mm |
Cutting table length | 2 000 mm | 2 000 mm |
Vertical travel | 1 200 mm | 1 200 mm |
Support surface height | 550 mm | 550 mm |
Maximum feed speed | 4 000 mm/min | 4 000 mm/min |
Axis positioning accuracy | < 0,5 mm | < 0,5 mm |
Abrasive wire cutting
Applications incorporating this machine
Would you like to find out more about special production machinery?
Find out everything you need to know and much more!
taglio-di-materiali-isolanti-con-filo-abrasivoCutting insulating materials with abrasive wire
High-speed abrasive wire cutting allows a wide variety of materials to be machined, including the most flexible ones, with virtually no cutting effort. It produces an extremely fine cut and does not impose any preferred direction, offering complete freedom of movement to cut in all directions.
Abrasive wire cutting of shapes and lettering
In signage, advertising and visual decoration, precision and speed make all the difference. Conventional cutting methods leave thick edges, mark the material and struggle with fine geometries. To remedy this, LF Technologies has designed an abrasive wire cutting machine with a rotating table.
