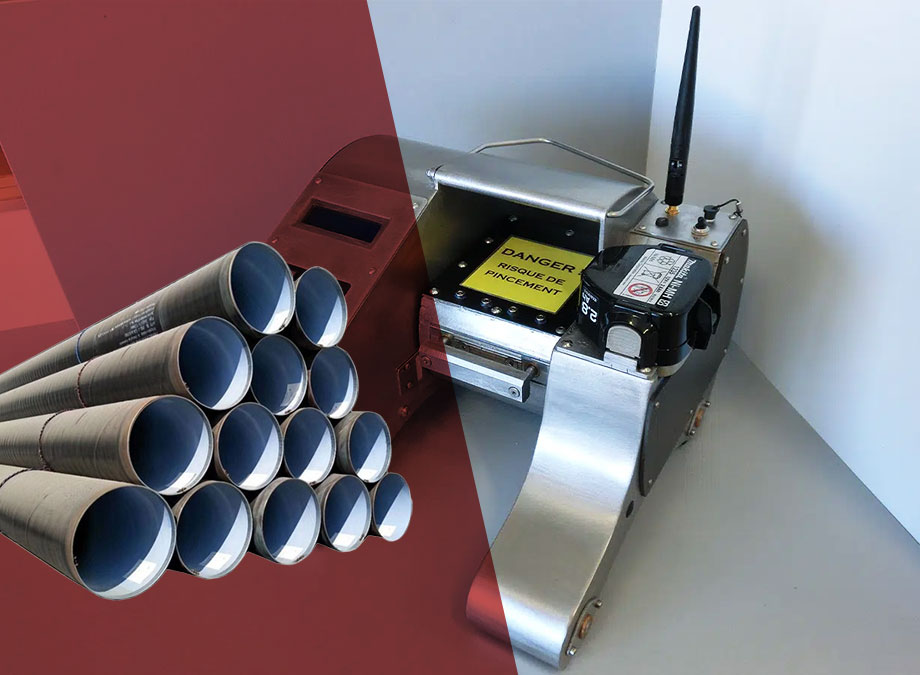

Peeling bench on tube
- Autonomous and portable worksite machine with transport case
- The use is simple and intuitive, including for an unskilled operator
- No tools are needed thanks to the automatic clamping of vices, jaws or clips
- Standard batteries (makita)
Products tested
Sector of activity
Main functions
The pipe peel tester is used to test the peel strength of protective coatings on pipeline pipes. The stainless steel machine is self-contained and powered by a standard battery. It records the peel force over a sample length of up to 200mm. The pipe peeler is also equipped with a carrying case with force and displacement monitor and report printout.
Operating mode
The machine is equipped with a gripper that allows the end of the sample to be picked up. This clamp is inserted into a Ø 150 mm reel. The driving wheels of the machine, associated with a light barrier, allow the torn-off part of the sample to be held in a radial position, without a return roller. Two removable side pulleys allow the machine to be strapped onto the tube if required. A 4-button keypad controls the clamp (un)clamping, drum rotation, machine movement and cycle.
Tube peel testing machine
Tube peel testing machine
Pipeline
Adhesion testing of overhead pipeline insulation.
Coated drums
Testing the bonding of rubber lining for conveyor drums.
Portable machine
Easy-to-transport tube peel testing machine in carrying case.
Ease of use
Operation is simple and intuitive (even for unskilled operators).
Automatic tightening
Peel test in progress
Advantages of the Tube Peeling Bench
On-site testing
Testing the bonding of the coating, directly on the marine site.
Standard batteries
Standard batteries (makita)
TECHNICAL SPECIFICATIONS of the Tube Peeling Bench
Spécifications | MPT |
Caractéristiques de l'appareil | |
Force de traction max. | 1 500 N |
Diamètres des tubes | 300 à 1 200 mm |
Epaisseur de revêtement max. | 12 mm |
Largeur de bande | de 20 à 50 mm |
Longueur d’arrachement | < 200 mm |
Vitesse d’essai | 10 mm/mn |
Vitesse rapide | 100 mm/mn |
Distance max entre la machine et la valise (selon l’environnement) | 3 m |
Tension d’alimentation de la valise (fréquence) | 230V (50 Hz) |
Dimensions | |
Largeur machine | 302 mm |
Profondeur machine | 325 mm |
Hauteur machine | 229 mm |
Largeur valise | 580 mm |
Profondeur valise | 380 mm |
Hauteur valise | 270 mm |
Poids partie machine | 17 kg |
Poids partie coffre (hors machine) | 12 kg |
Customer applications
Would you like to find out more about mechanical test benches?
Find out everything you need to know and much more!
Peel testing machine for pipeline
The pipe peeling machine is a self-contained unit, fitted with a carrying case, for carrying out coating peel tests on pipeline pipes (gas, oil, etc.);
